Concrete outdoor stairs
System for construction garden stairs.
STAVOBLOCK is suitable for multilevel terrains.
The STAVOBLOCK system allows for the construction of staircases for various altitude levels in gardens. The staircase is often a part of a retaining wall and concrete fences, but it can also be built separately. The base of the construction is the gravel bed onto which the blocks are dry-assembled. The facing elements are interlocked with dovetail joints and bars that prevent any kind of movement.

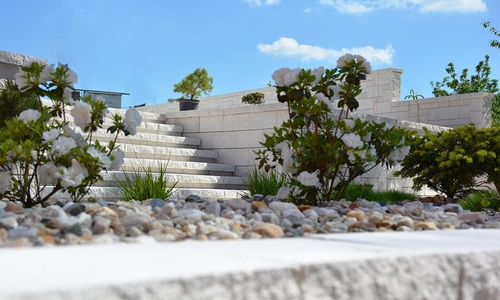

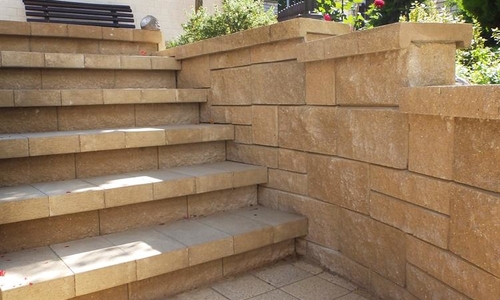

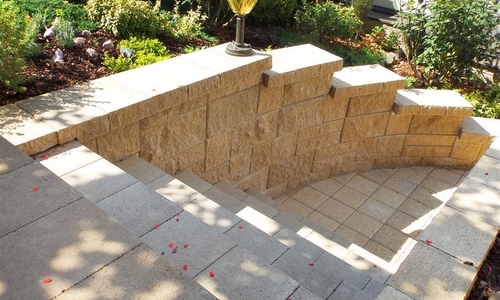

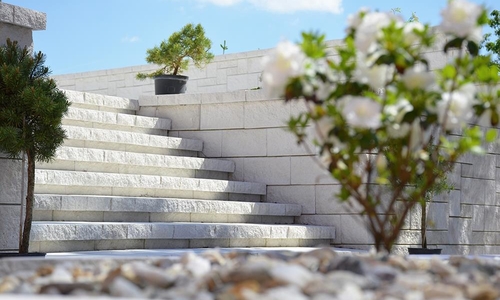

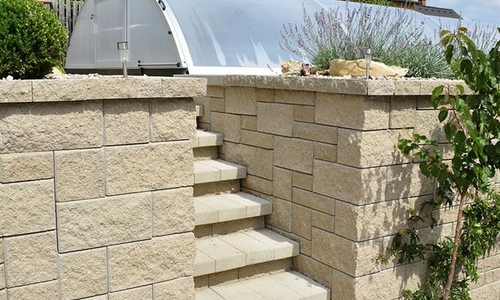

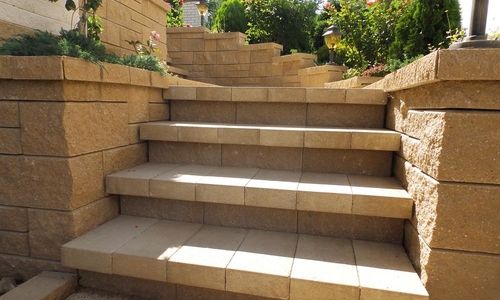

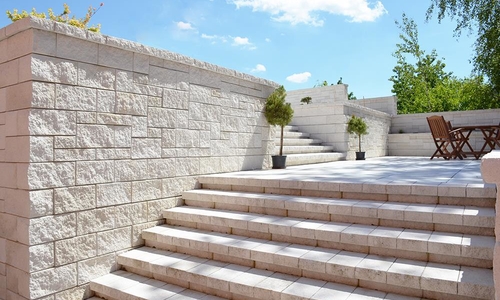

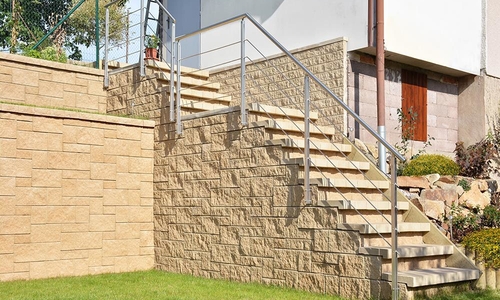

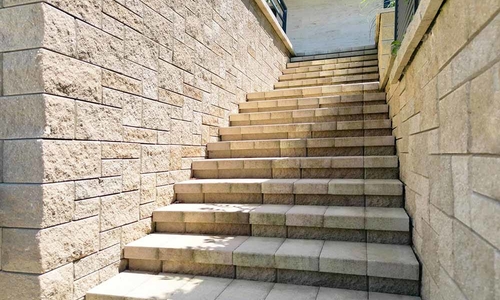

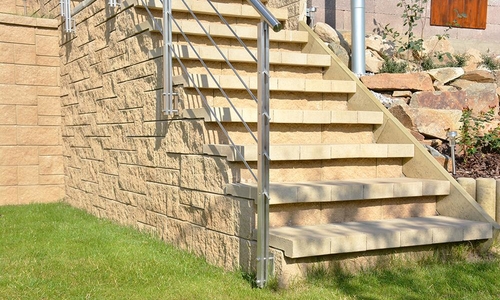

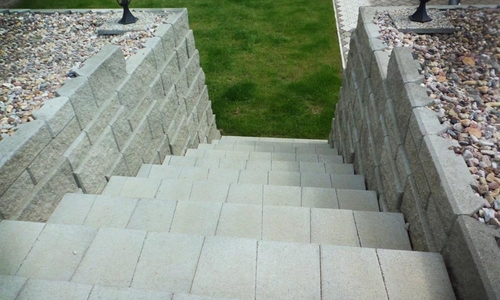

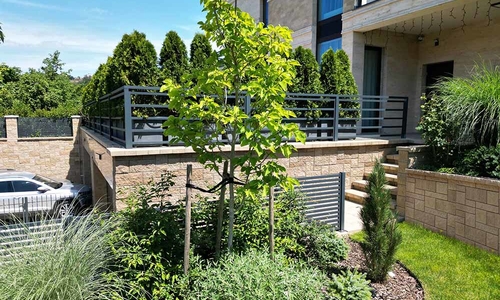

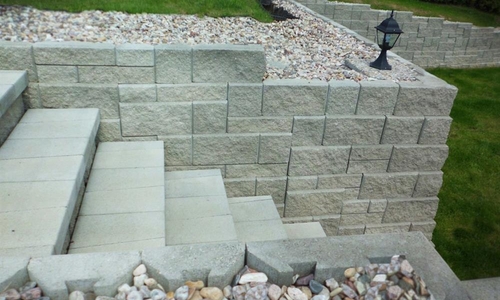

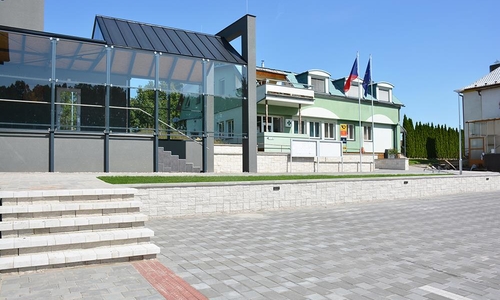

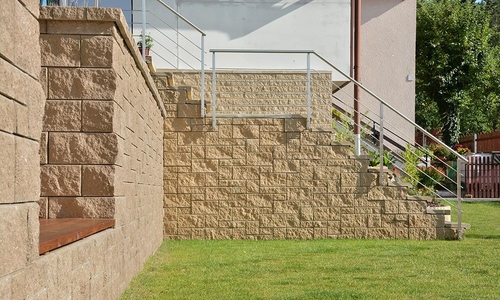

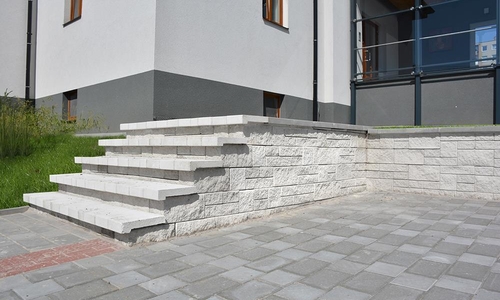

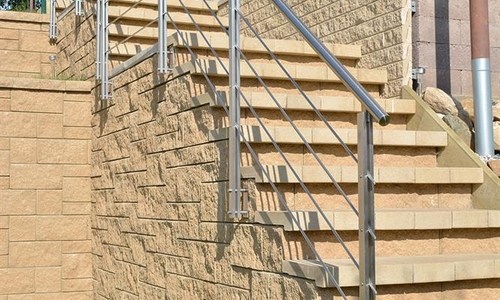

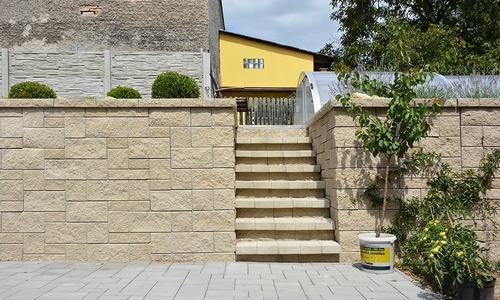

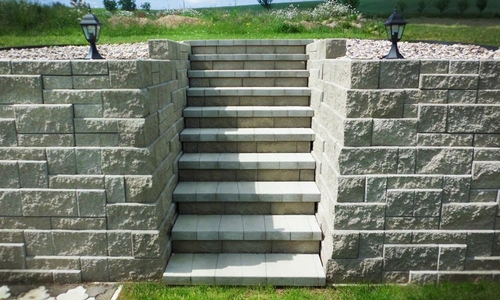

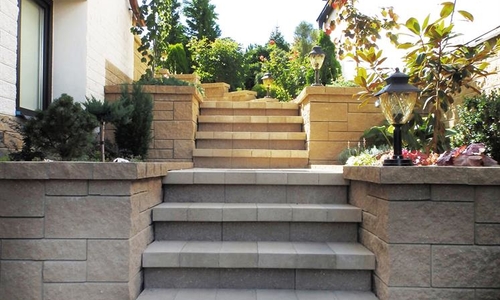

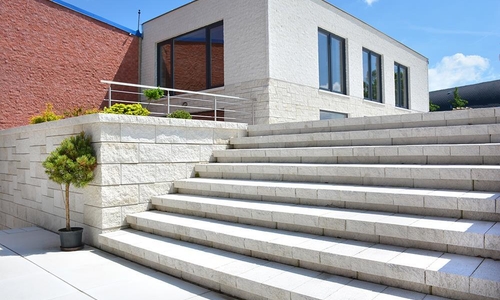

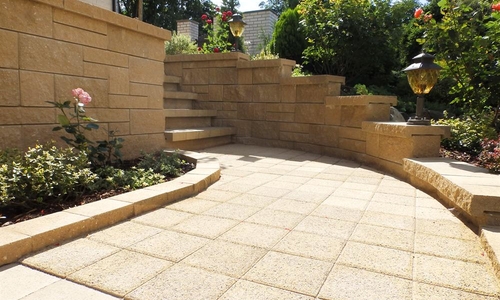

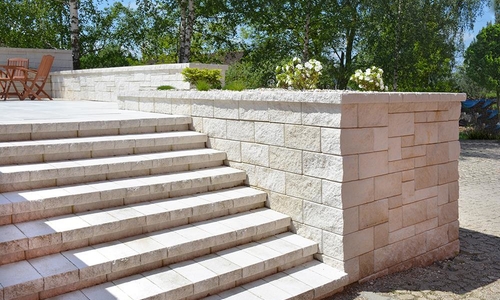

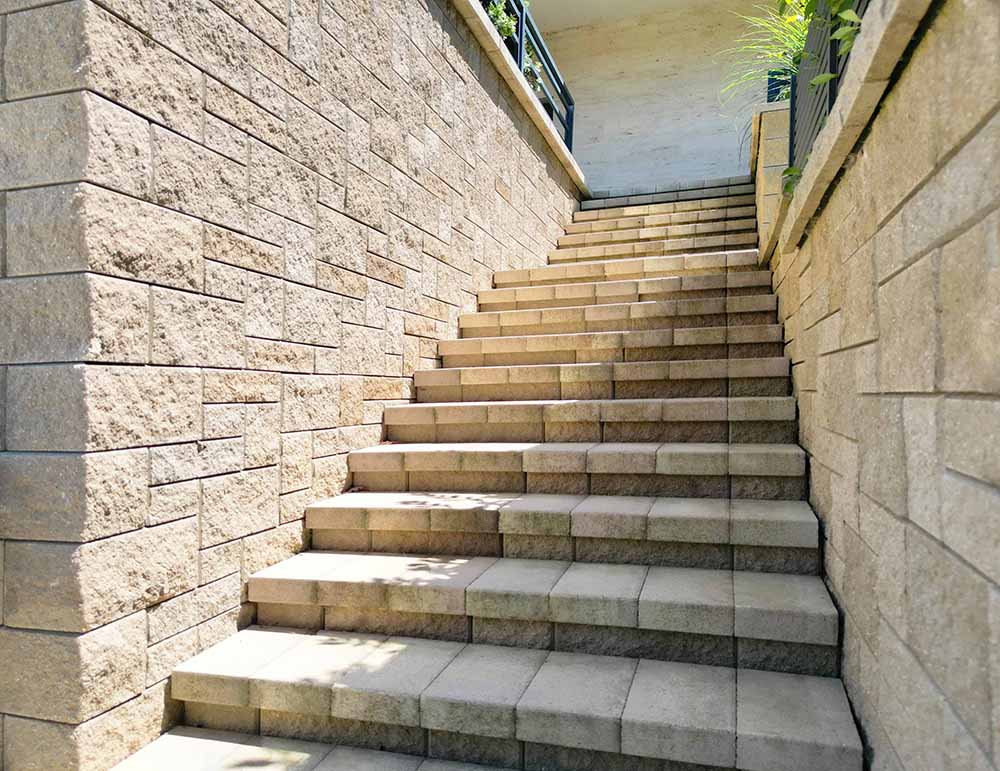

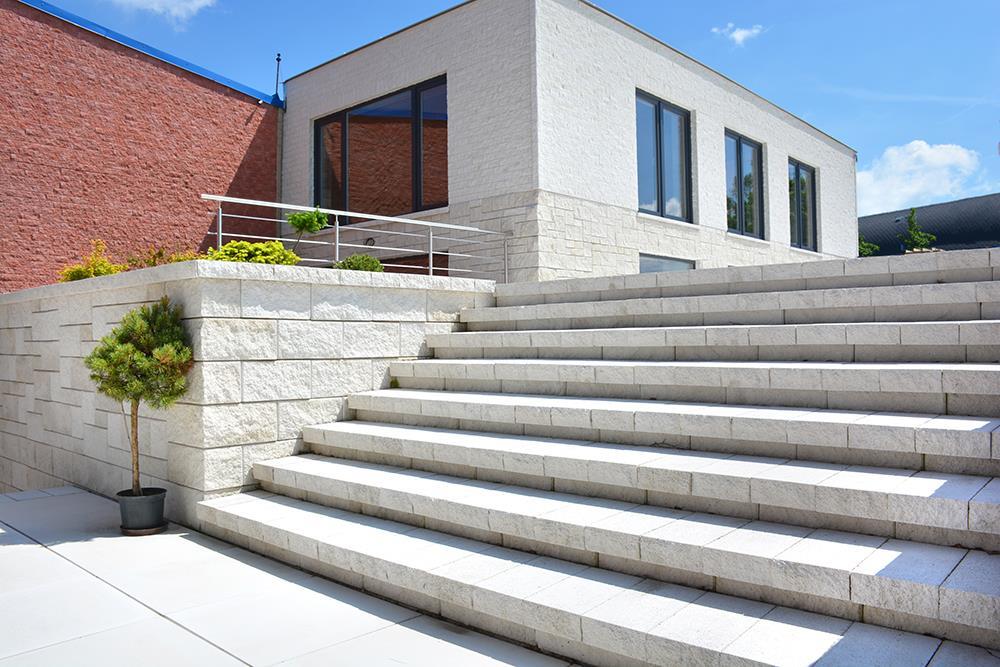

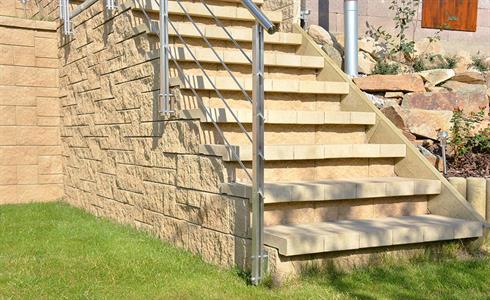

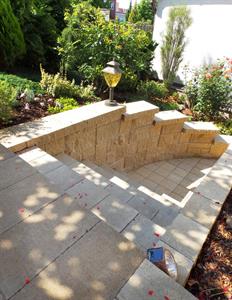

Photogallery of references
Colour variants
CAUTION: The colours are presented for reference only, the colour tone may slightly differ.
Technicial specifications
Material |
vibro-pressed color concrete |
Surface finish |
split, smooth |
Freeze resistance acc. to ČSN 731322 |
T25 |
Pressure strength acc. to ČSN ISO 4012 |
19,78 Mpa (Forming Elements), 7,5 Mpa (Anchoring Elements) |
Volume weight |
2100 kg/m3 |
Absorption capacity acc. To ČSN 731316 |
4-5 % |
Model of construction
1.Original Terrain
2.Excavation for Gravel Bed
3.Drain Pipe
4.Compacted Gravel Bed
5.Forming Elements - Jumbo, Standard, Flat, Pony, Angled Element
6.Anchoring Elements - Double Join Rod, T-Coupler
7.Compacted Backfill - Gravel
8.Wall and Stairscases End Cap - Copping Unit

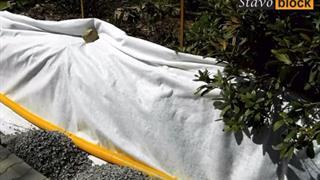

Videos
Building elements
CAUTION: The material consumption is for information only; it is based on a statistical calculation.
-
Stavoblock JUMBO
Size:
length 400 mm, height 200 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
15 kg
Consumption per 1 m2:
12,5 pcs
Quantity per pallet:
96 pcs
Weight of the pallet, including packaging:
1450 kg
-
Stavoblock FLAT
Size:
length 400 mm, height 100 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
7 kg
Consumption per 1 m2:
25 pcs
Quantity per pallet:
192 pcs
Weight of the pallet, including packaging:
1385 kg
-
Stavoblock STANDARD
Size:
length 200 mm, height 200 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
6,5 kg
Consumption per 1 m2:
25 pcs
Quantity per pallet:
192 pcs
Weight of the pallet, including packaging:
1270 kg
-
Stavoblock PONY
Size:
length 200 mm, height 100 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
3,4 kg
Consumption per 1 m2:
50 pcs
Quantity per pallet:
384 pcs
Weight of the pallet, including packaging:
1325 kg
-
Angled element
Size:
length 400 mm, height 200 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
20 kg
Consumption per 1 m2:
5 pcs
Quantity per pallet:
32 pcs right corners + 32 pcs left corners
Weight of the pallet, including packaging:
1300 kg
-
Coping unit (for staircases and retainig walls)
Size:
length 200 mm, height 75 mm, width 360 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
8,64 kg
Consumption per running meter:
5 pcs
Quantity per pallet:
48 pcs
Weight of the pallet, including packaging:
356 kg
-
Double join rod
Size:
length 392 mm, width 247 mm, height 200 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
15,5 kg
Consumption per 1 rm/m2:
2,5 pcs / 12,5 pcs
Quantity per pallet:
108 pcs
Weight of the pallet, including packaging:
1674 kg
-
Corner coupler
Size:
length 110 mm, width 146 mm, height 200 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
3,1 kg
Consumption per running meter:
5 pcs
Quantity per pallet:
144 pcs
Weight of the pallet, including packaging:
466 kg
