The STAVOBLOCK facade cladding with footing is ideal for installation on the bottom part all types of buildings. It provides thorough drainage of excessive moisture to the external environment, which prevents the occurrence of moulds.
The STAVOBLOCK heat insulation facade is an elegantly thin facade cladding, dry-assembled to metal grate. Its properties help you save time and money spent on heating and maintenance related to future repairs and coating.

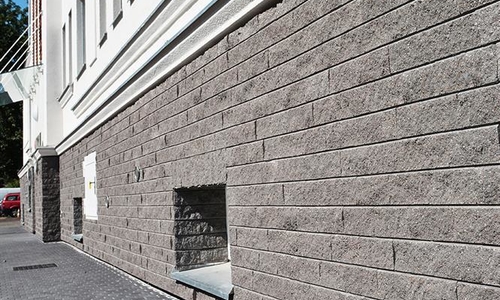

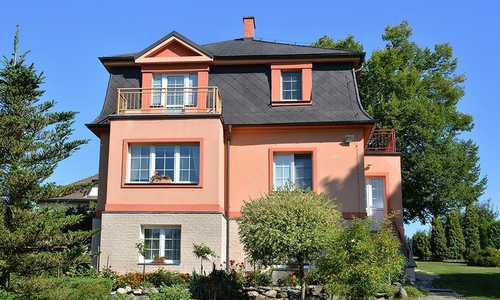

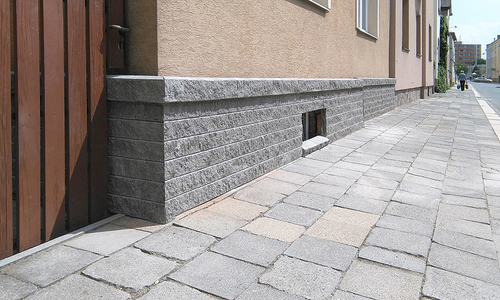

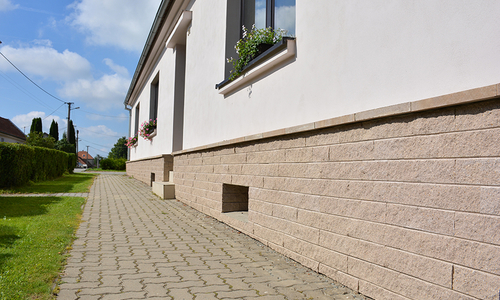

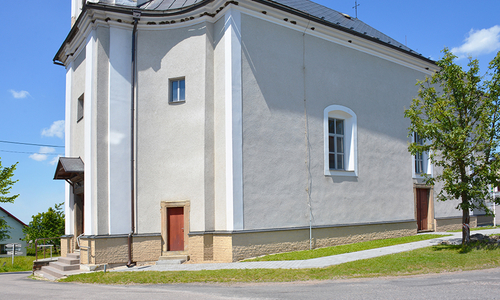

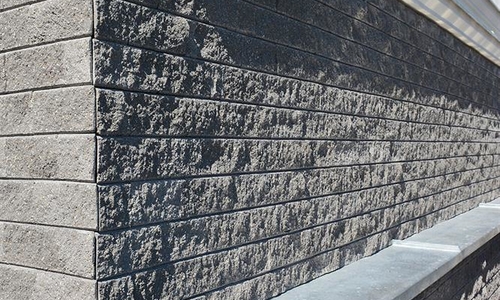

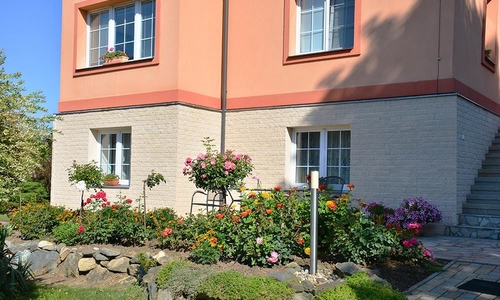

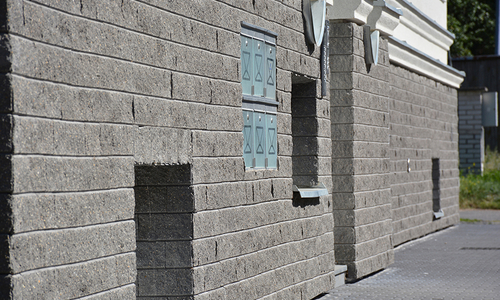

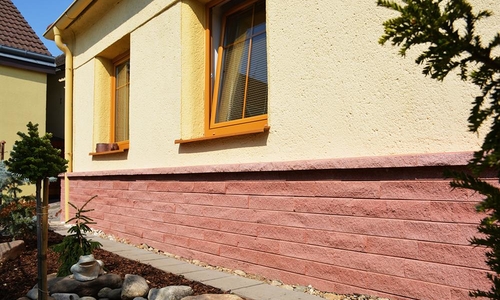

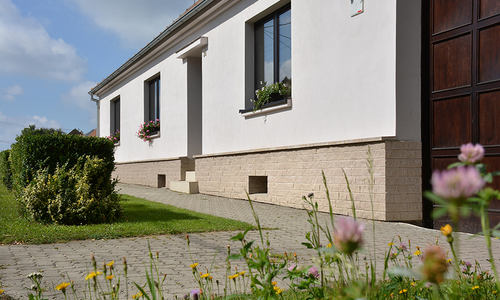

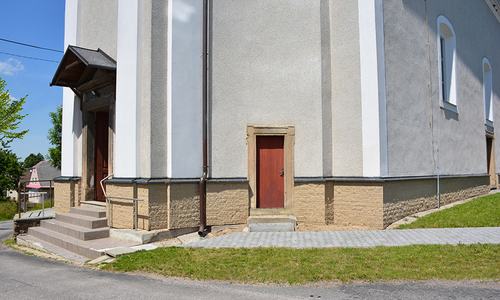

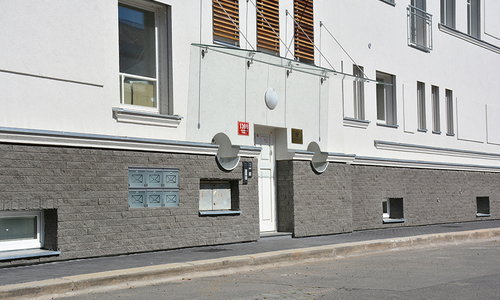

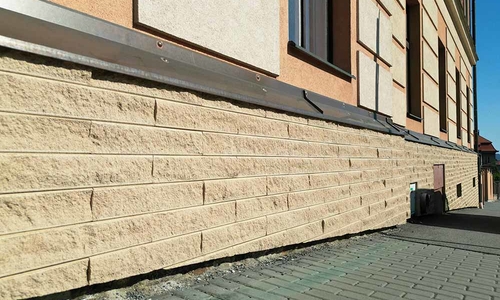

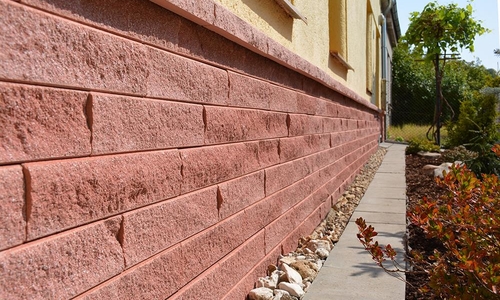

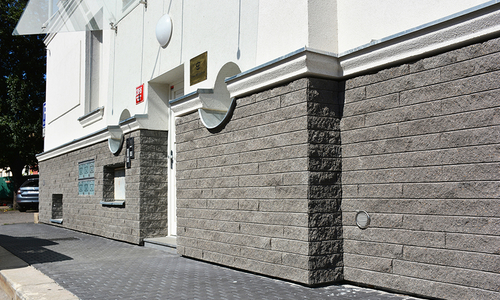

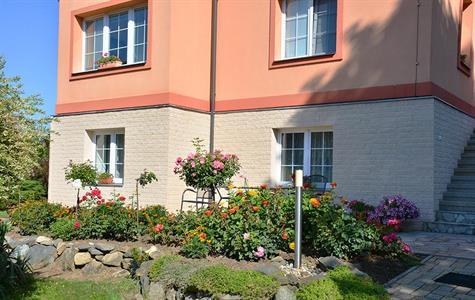

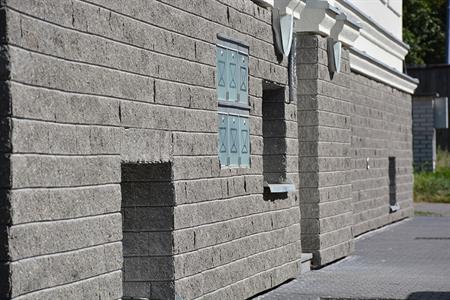

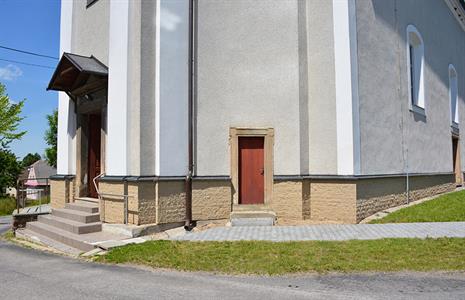

Photogallery of references

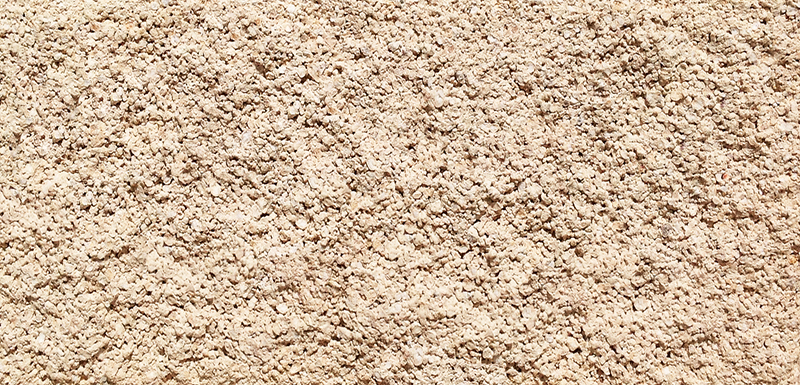

Colour variants
CAUTION: The colours are presented for reference only, the colour tone may slightly differ.
What do you get with Stavoblock
1THE MOST BEAUTIFUL HOUSE IN THE STREET We guarantee quiet envy
2BREATHING IN A CLEAN ENVIRONMENT WITHOUT MOULDS Healthy living for you and your children
3A PENNY SAVED IS A PENNY EARNED -> RETURN ON INVESTMENT You will not have to deal with the facade at least for two generations
4FAMILY WEALTHLeave valuable inheritance
5END OF WEEKENDS ON THE STEPLADDERSpend your free time with the family
6A PENNY SAVED IS A PENNY EARNED -> SAVE A FORTUNE Your heating bill will be lower
7QUIET HOME Reduced noise from the neighbourhood or a busy street
8SAFE HOMEThe facade that does not burn is a great protector
9SATISFACTION.... with the selection of the facade cladding
Technicial specifications
| Material |
vibropressed leightweight concrete |
| Surface finish |
split, smooth |
| Fire resistance |
min. 90 minutes |
| Weight of 1 pc |
1,0 kg (±10%) |
| Volume weight |
623 kg/m3 (±10%) |
| System thickness without air gap |
min. 40 mm, max. 350 mm |
| System thickness with air gap |
min. 60 mm, max. 350 mm |
| Thermal conductivity coefficient λ |
0,066 W/mK |
| Vapour resistance µ |
6,3 |
| Brick dimensions |
470 x 100 x 30 (l x h x w) |
| Number of bricks per m2 |
21 |
| Noise attenuation |
up to 10 dB |

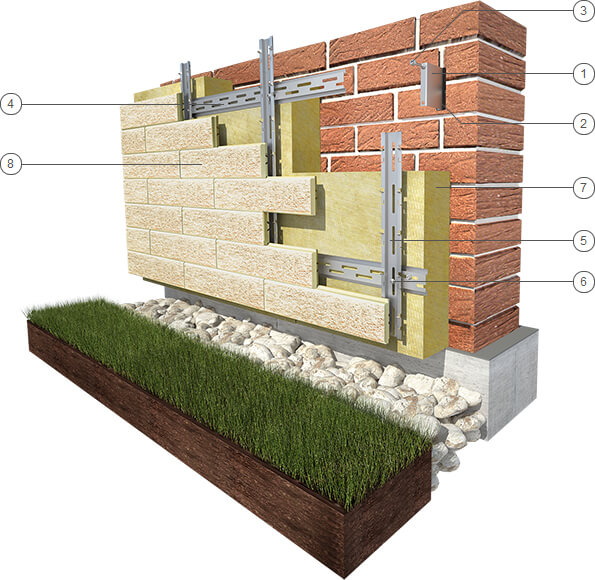

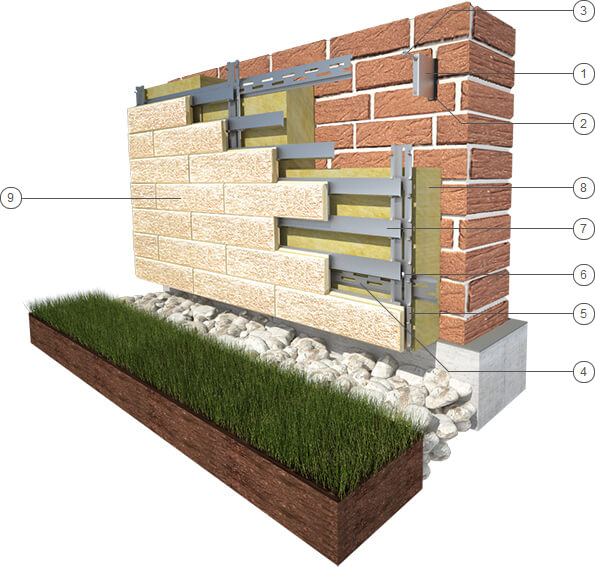

Model of construction
water-resistant surface
1.Support profile attached to the masonry by Mungo Dowel and Threaded rod
2.Thermostop inserted between the angle bar and the masonry
3.2x Nut with serrated flange to attached vertical suspension Omega with Threaded rod
4.Steal bearing Omega bar - vertical
5.Steal suspension Omega bar - horizontal
6.Lag + Nut with serrated flange for connect crossing Omega bars
7.Thermal insulation
8.Stavoblock Facade tile
thin tile, thickness 3 cm elegant appearance
open to moisture and water vapor difusion heathy living
steel grid specially suggested max. stability
each brick self-hanging max. safety
non-flammable materials – A category highest fire resistance
Building elements
CAUTION: The material consumption is for information only; it is based on a statistical calculation.
-

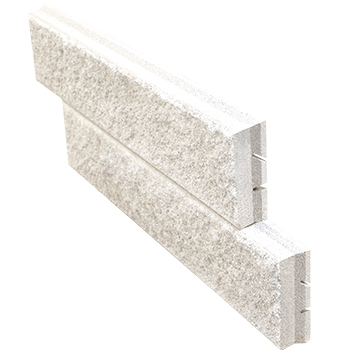

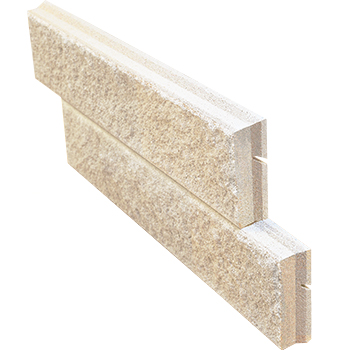

Stavoblock Facade brick
Size:
width 30 mm, height 100 mm, length 470 mm,
Size tolerance:
± 2 mm
Surface finish :
split, smooth
Weight:
1,0 kg ±10%
Quantity per pallet:
20 ks
Weight of the pallet, including packaging:
20 kg
Consumption:
21 ks / 1 m2
-
Window sill
Size:
width 200/300 mm, height 30 mm, length 470 mm
Size tolerance:
± 2 mm
Surface finish :
smooth, front - split/smooth
Weight:
3 kg
Consumption per running meter:
2,1 pcs
Quantity per pallet:
4 pcs
-
Mungo Dowel
Size:
MN 12x60 mm
Weight:
0,005 kg
Material:
PVC
Consumption:
3,2 ks / 1 m2
-
Threaded rod
Size:
M8 x 100 mm
Weight:
0,020 kg
Material:
galvanized steel
Consumption:
3,2 ks / 1 m2
-
Thermostop
Size:
25 x 100 x 5 mm
Weight:
0,023 kg / 1 rm
Material:
PVC
Consumption:
3 pcs / 1 m2
-
Supporting profile
Size:
width 80 mm, height 100 mm, length 15 mm
Weight:
0,12 kg
Material:
galvanized steel
Consumption:
according to the project
-
Lag bolt
Size:
6 HR M8
Weight:
0,003 kg
Material:
galvanized steel
Consumption:
5 pcs / 1 m2
-
Nut with serrated flange
Size:
M8x12
Weight:
0,007 kg
Material:
galvanized steel
Consumption:
5 pcs / 1 m2
-
Suspended Omega bar (vertical)
Size:
width 61 mm, height 20 mm, length 2120 mm
Weight:
1,418 kg
Weight of the pallet, including packaging:
14,18 kg
Material:
galvanized steel
Consumption:
2,45 pcs / 1 m2
-
Bearing Omega bar (horizontal)
Size:
width 61 mm, height 20 mm, length 2110 mm
Weight:
1,589 kg
Weight of the pallet, including packaging:
15,9 kg
Material:
galvanized steel
Consumption:
1 pcs / 1 m2
-
Connecting piece of Omega bars
Size:
width 1,5 mm, height 38 mm, length 120 mm
Weight:
0,068 kg
Material:
galvanized steel
Consumption:
1,6 pcs / 1 m2
-
Parapet profile
Size:
width 40 mm, height 40 mm, length 2120 mm
Weight:
1,667 kg
Material:
galvanized steel
Consumption:
0,5 pcs / 1 bm
-
Window profile
Size:
width 2 mm, height 72 mm, length 1500 mm
Weight:
1,5 kg
Material:
galvanized steel
Consumption:
0,66 pcs / 1 bm
-
Adjustable extension L100
Size:
width 50 mm, height 25 mm, length 100 mm
Weight:
0,046 kg
Material:
galvanized steel
Consumption:
3,2 pcs / 1 m2
-
Connecting piece of Bricks
Size:
width 60 mm, height 15 mm, length 80 mm
Weight:
0,026 kg
Material:
galvanized steel
Consumption:
11 pcs / 1 m2
-
Expanded metal
Size:
according to the project
Material:
galvanized steel
Consumption:
according to the project
