Pavement for Parking Areas
System for the construction of roads and taxi surfaces.
TRI-LOCK blocks are suitable for large unpaved areas.
The TRI-LOCK system is a large-scale load pavement that is dry-assembled without curbs. The area of the pavement consists of two elements that are repetitive – a lock and a key, which prevents it from moving. When compared with standard interlocking pavement, TRI-LOCK lets rainwater through so there are no puddles. The area can be turfed after installation. The system can be used to reinforce the banks of rivers and streams, as flood-protection levees and retention dams and areas.

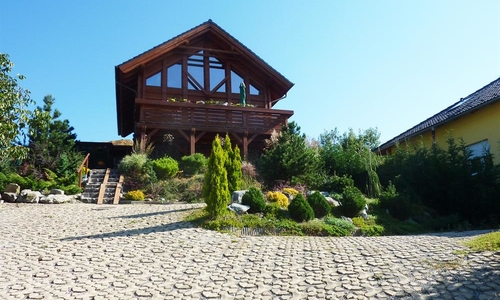

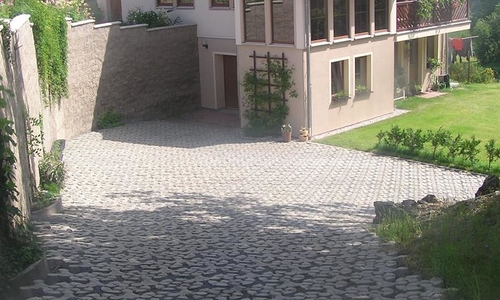

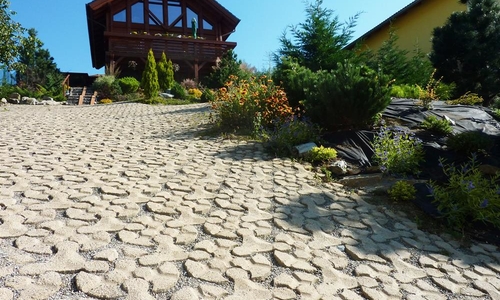

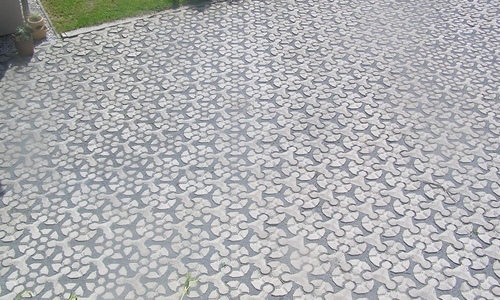

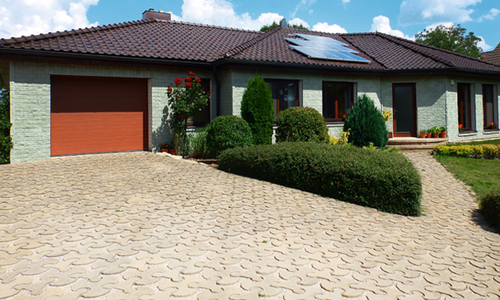

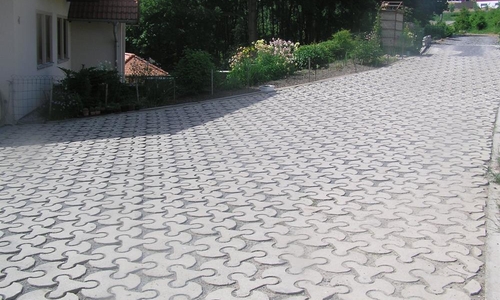

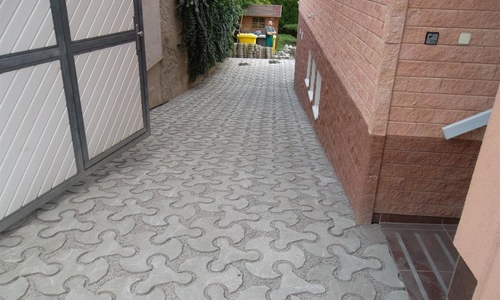

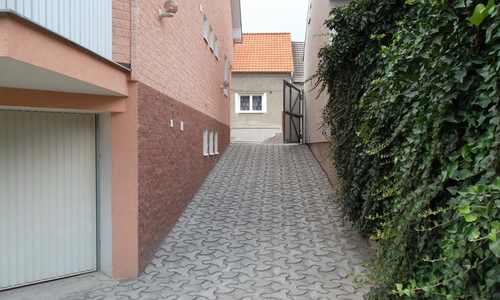

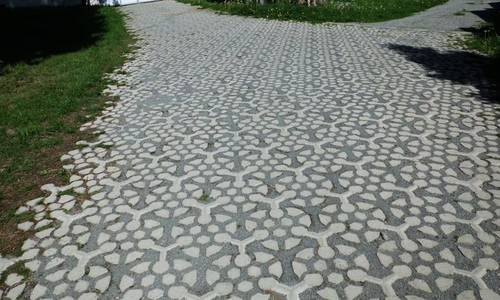

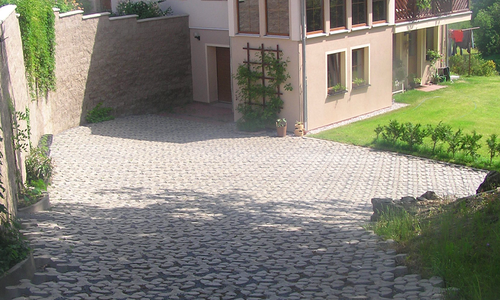

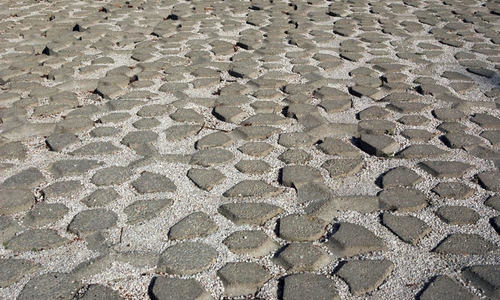

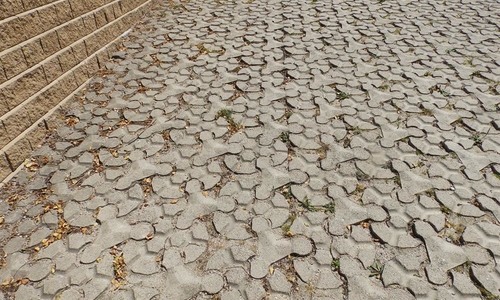

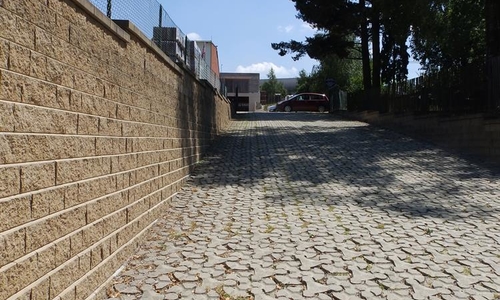

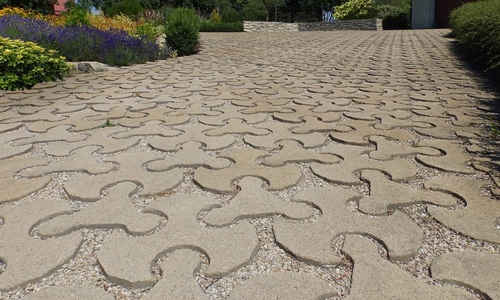

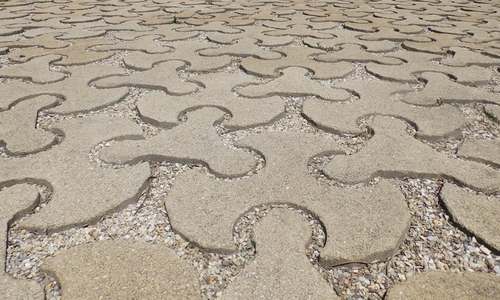

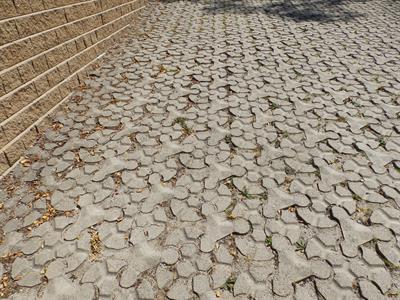

Photogallery of references
Colour variants
CAUTION: The colours are presented for reference only, the colour tone may slightly differ.
Technicial specifications
| Material |
vibro-pressed color concrete |
| Surface finish |
smooth, grooved |
| Freeze resistance acc. to ČSN 731322 |
T25 |
| Pressure strength acc. to ČSN ISO 4012 |
to 50 Mpa |
| Volume weight |
2100 kg/m3 |
| Absorption capacity acc. To ČSN 731316 |
4-5 % |

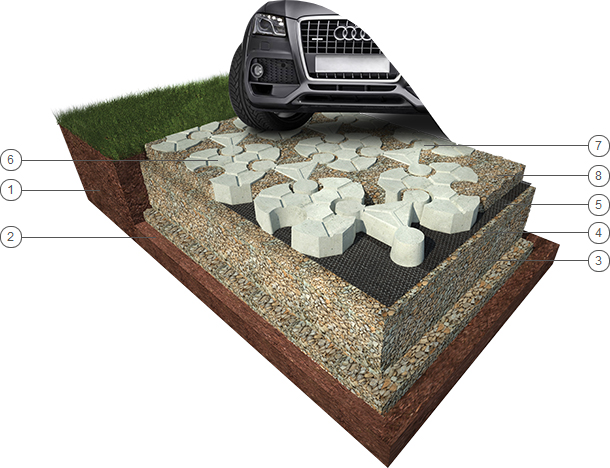

Model of construction
1.Original Terrain
2.Excavation for Gravel Bed
3.Compacted Gravel Bed
4.Compacted Gravel Bed - lower fraction
5.Geotextile (Filter Fabric) against growing green
6.Joint Pavement Tri-Lock - Key Block
7.Joint Pavement Tri-Lock - Lock Block
8.Compacted Backfill - Gravel
Videos
Building elements
CAUTION: The material consumption is for information only; it is based on a statistical calculation.
-
TRI-LOCK 100 mm - smooth
Size:
450 x 500 mm
(one module = key and lock)
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
28 kg
Consumption per 1 m2:
5,6 module
Quantity per pallet:
32 modules
Weight of the pallet, including packaging:
920 kg
-
TRI-LOCK 150 mm - smooth
Size:
450 x 500 mm
(one module = key and lock)
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
42 kg
Consumption per 1 m2:
5,6 module
Quantity per pallet:
28 modules
Weight of the pallet, including packaging:
1195 kg
-
TRI-LOCK 100 mm - grooved
Size:
450 x 500 mm
(one module = key and lock)
Size tolerance:
± 2,0 mm
Facing area:
grooved
Weight:
28 kg
Consumption per 1 m2:
5,6 module
Quantity per pallet:
32 modules
Weight of the pallet, including packaging:
920 kg
-
TRI-LOCK 150 mm - grooved
Size:
450 x 500 mm
(one module = key and lock)
Size tolerance:
± 2,0 mm
Facing area:
grooved
Weight:
42 kg
Consumption per 1 m2:
5,6 module
Quantity per pallet:
28 modules
Weight of the pallet, including packaging:
1195 kg
Downloads
Other products
-
System for reinforcement of banks and bottoms of rivers, streams and dams.
More information
-
System for the construction of flood protection levees, polders and as reinforcement of slopes.
More information
-
System for the construction of retention reservoirs, melioration drainage canals and culverts.
More information
Client references
"We have used the Tri-Lock paving to access road to house and we must appreciate it mainly for excellent lock-groove system. We have made the road without any problem and we need not any mortar or other connecting material."
František K.
"When we realised the greening of the area behind the house, we needed something to reinforce the terrain. Tri-Lock served us in it perfectly; we have laid it as the foundation, which do not provide any movement for months. In addition, the positioning was surprisingly easy, and thus we will recommend you surely."
K. Fous
"Several weeks after construction of pavements from Tri-Lock elements I can only express my very positive opinion. The pavement was (however with aid of your staff) made quickly and based on so-far using also very precisely. Hold on!"
