Retaining walls
System for construction retaining walls.
STAVOBLOCK is suitable for unstable slopes and multilevel terrains.
The STAVOBLOCK system includes garden walls of unlimited heights that are dry-assembled without the application of any mortar, adhesives and concrete. The walls can be straight or curved, they can copy the shape of the terrain. The base of the construction is a compacted gravel bed. The blocks are mutually linked with double-bars that close up with the terrain and prevent any kind of movement. The system also allows for the construction of concrete fences and staircases.

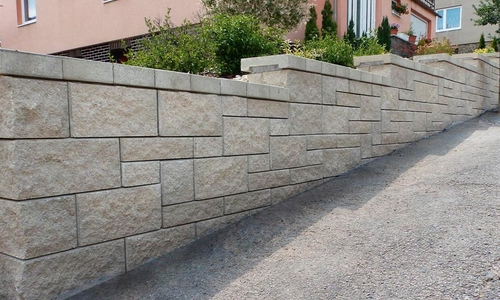

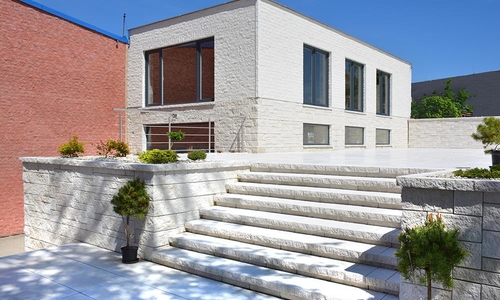

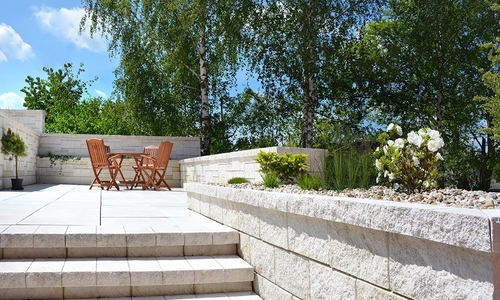

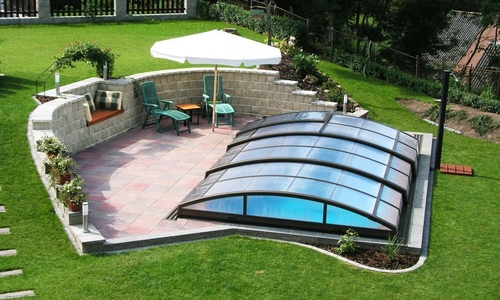

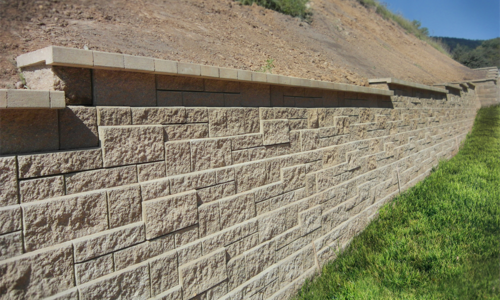

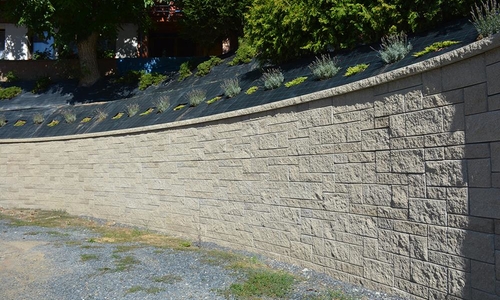

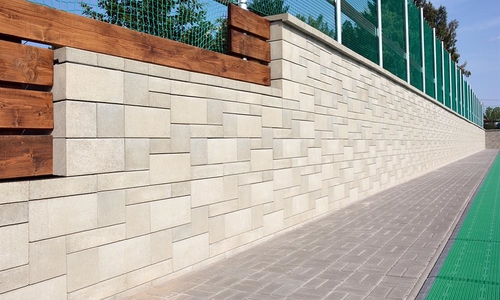

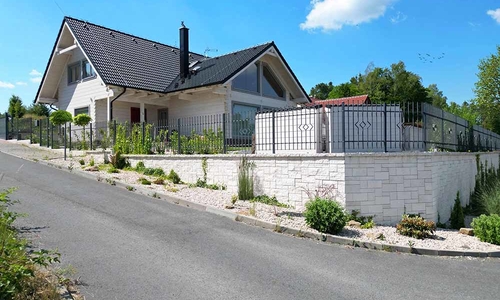

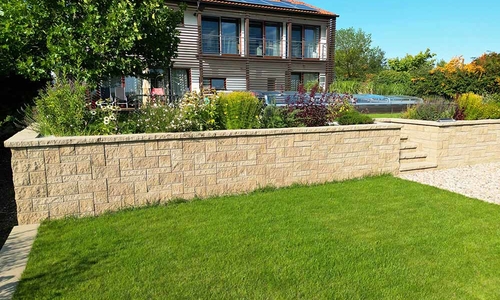

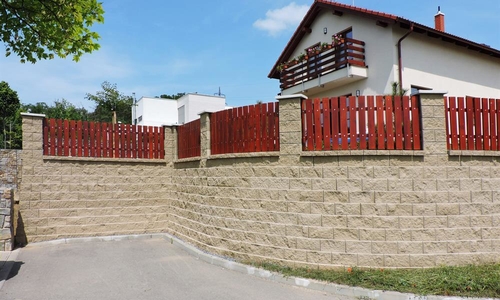

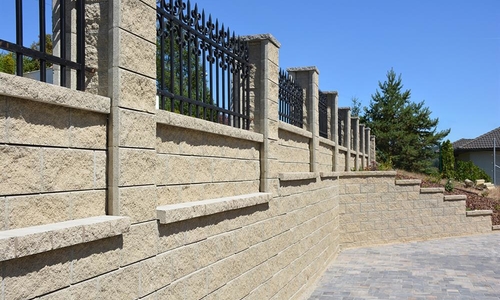

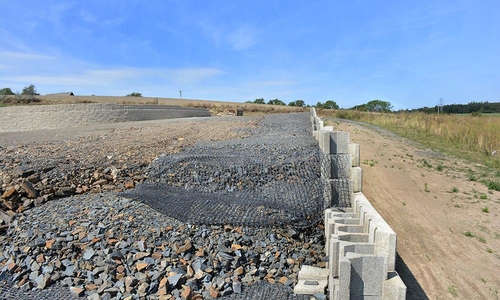

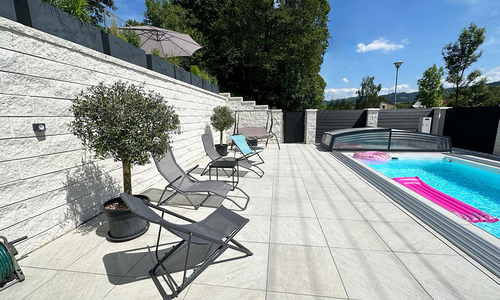

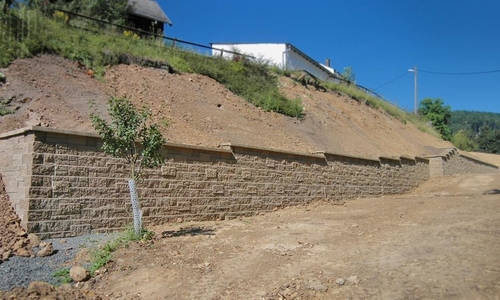

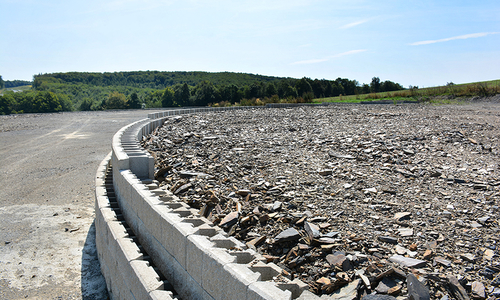

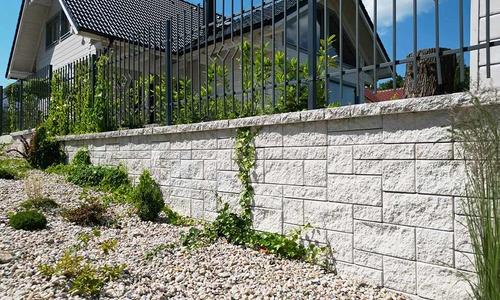

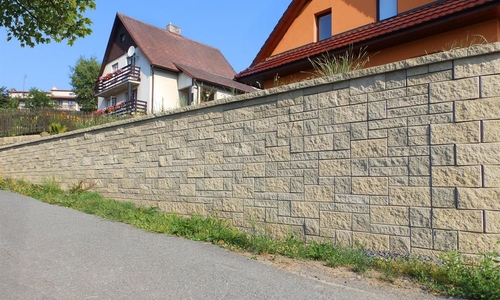

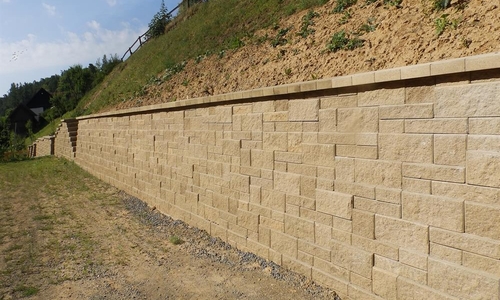

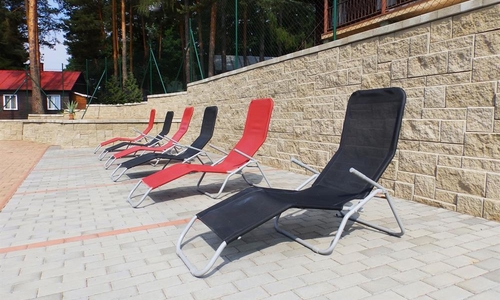

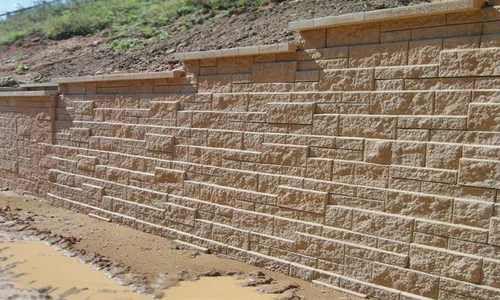

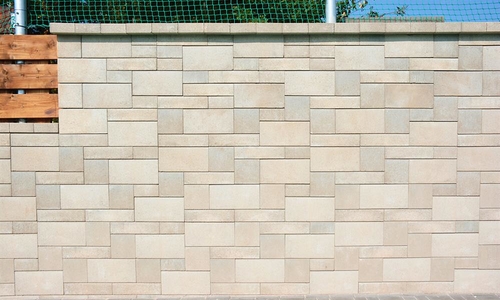

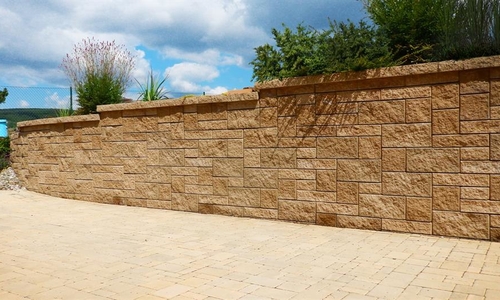

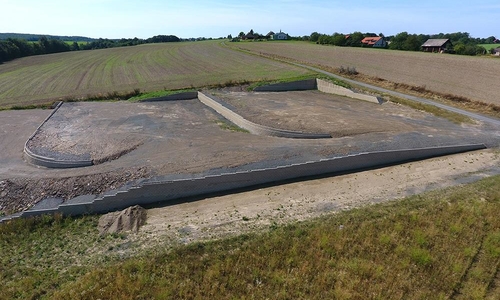

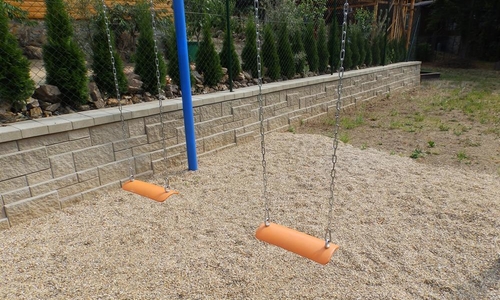

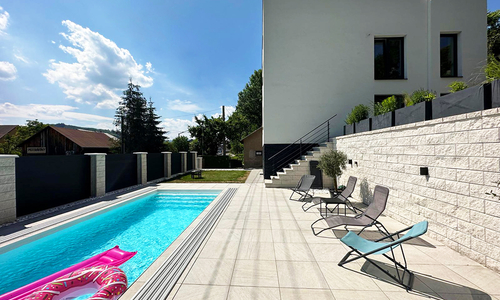

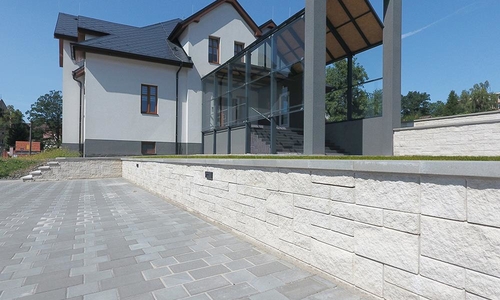

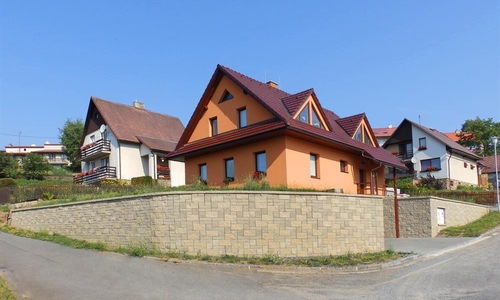

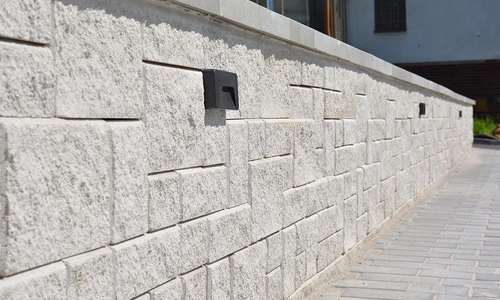

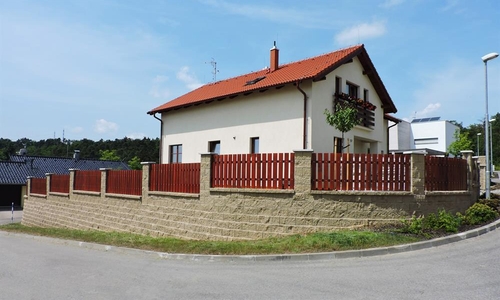

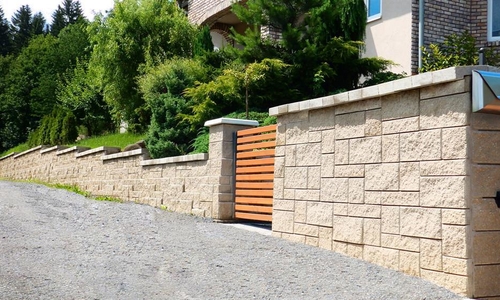

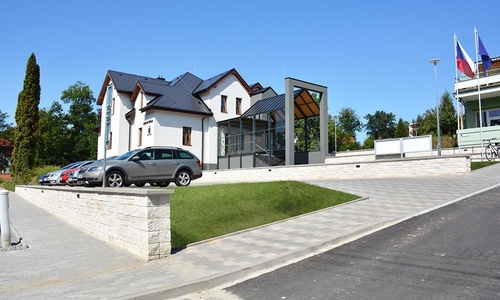

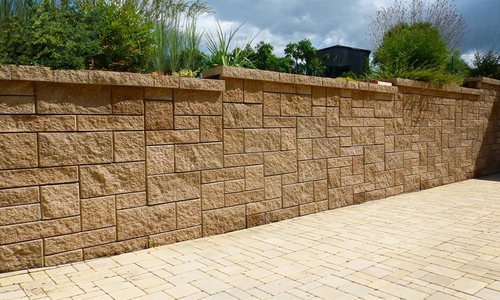

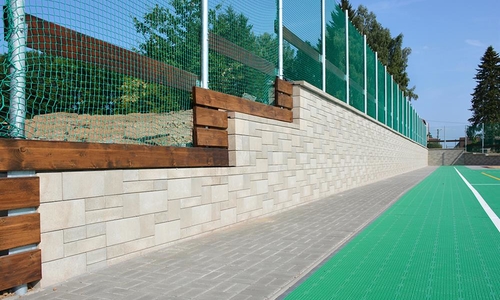

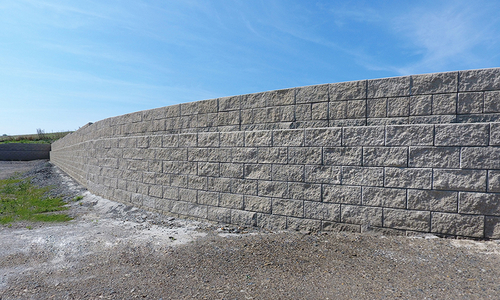

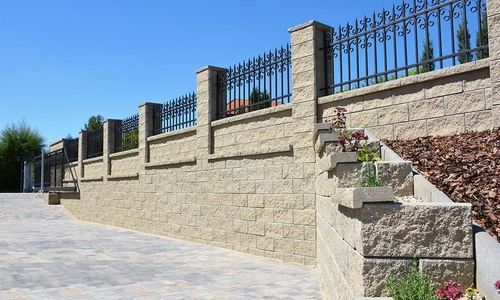

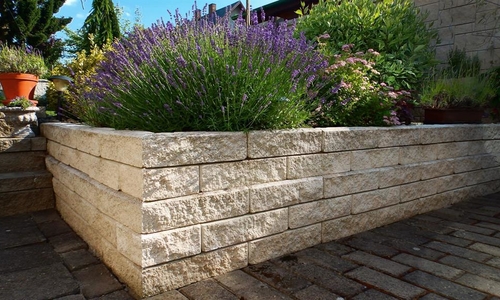

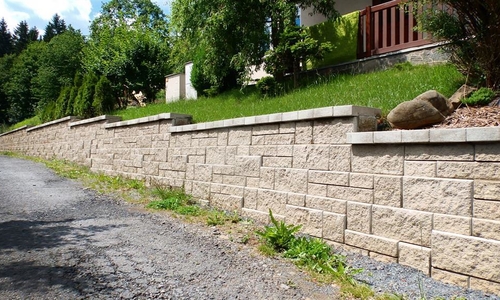

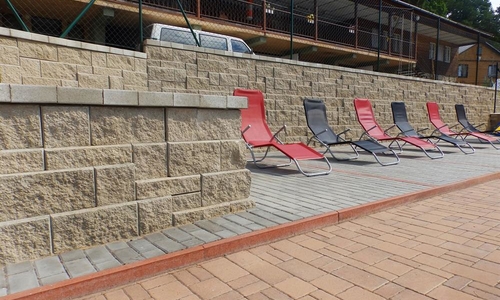

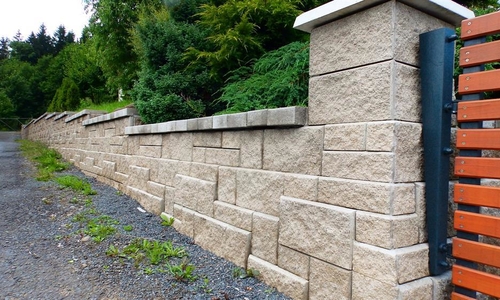

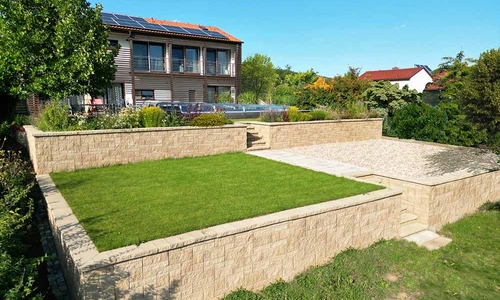

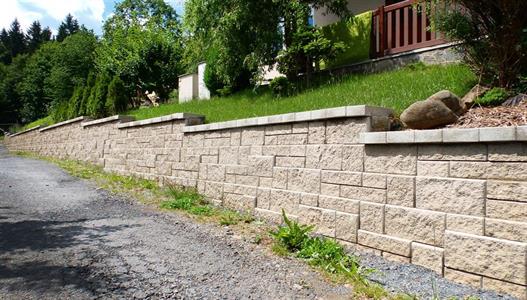

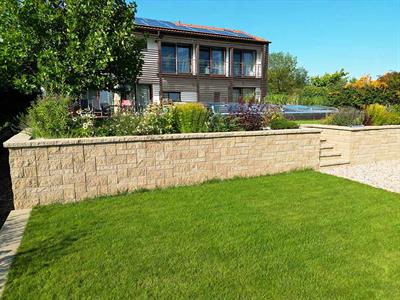

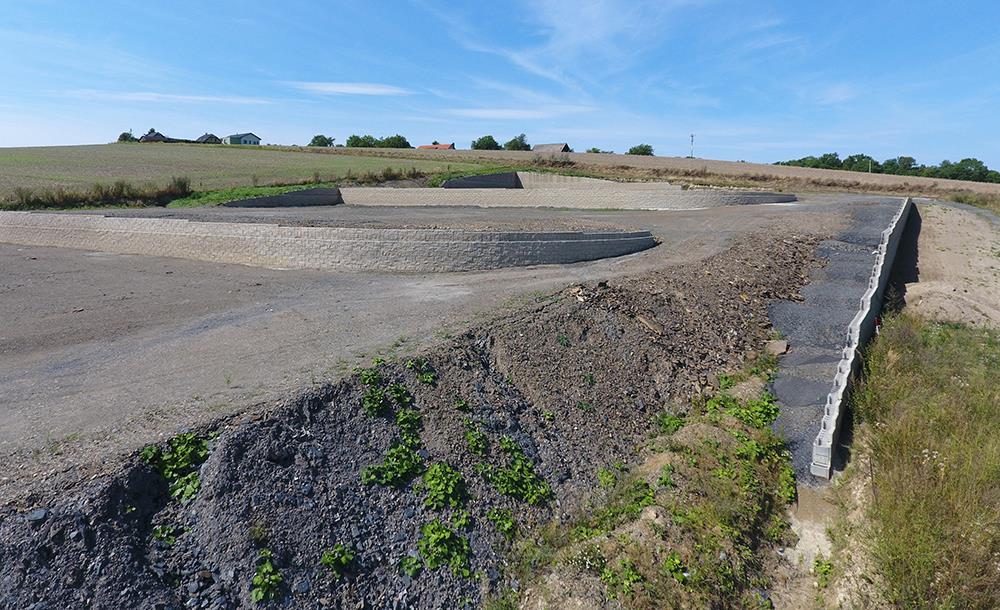

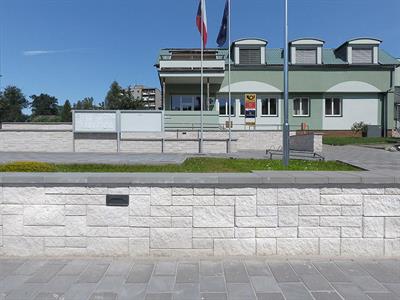

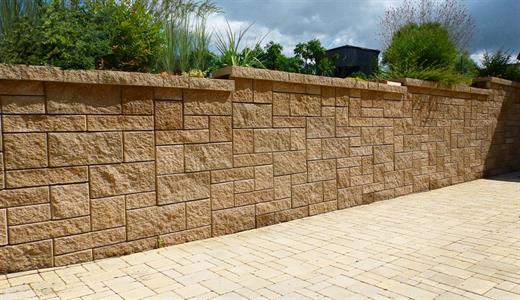

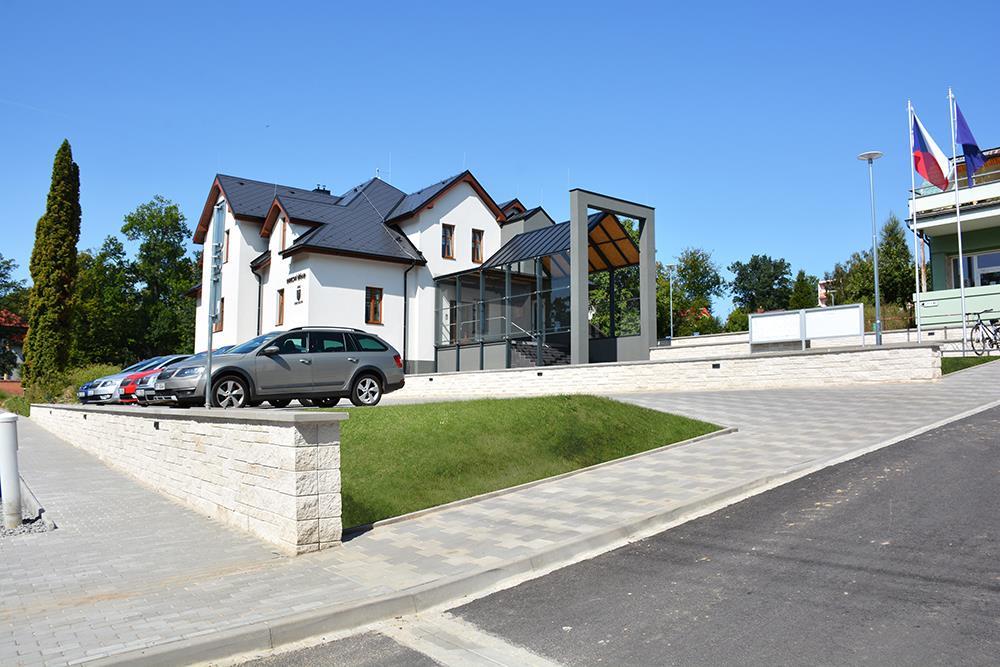

Photogallery of references

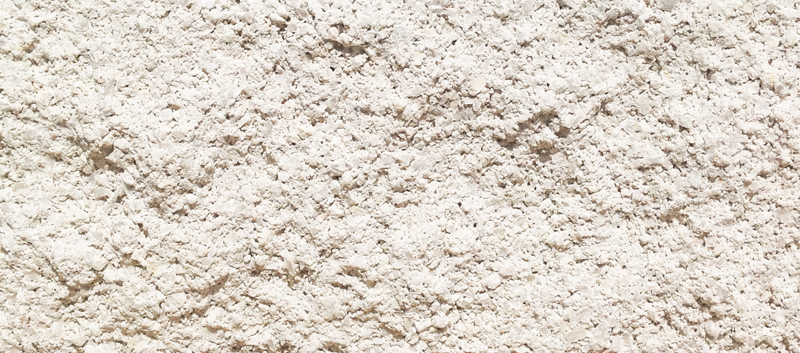

Colour variants
CAUTION: The colours are presented for reference only, the colour tone may slightly differ.
Technicial specifications
Material |
vibro-pressed color concrete |
Surface finish |
split, smooth |
Freeze resistance acc. to ČSN 731322 |
T25 |
Pressure strength acc. to ČSN ISO 4012 |
19,78 Mpa (Forming Elements), 7,5 Mpa (Anchoring Elements) |
Volume weight |
2100 kg/m3 |
Absorption capacity acc. To ČSN 731316 |
4-5 % |
Model of construction
1.Original Terrain
2.Excavation for Gravel Bed
3.Drain Pipe
4.Compacted Gravel Bed
5.Forming Elements - Jumbo, Standard, Flat, Pony, Angled Element
6.Anchoring Elements - Double Join Rod
7.Compacted Backfill - Gravel
8.Wall and Stairscases End Cap - Copping Unit

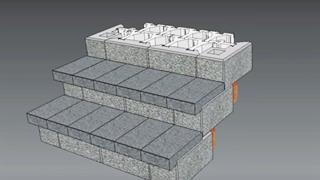

Videos
Building elements
CAUTION: The material consumption is for information only; it is based on a statistical calculation.
-
Stavoblock JUMBO
Size:
length 400 mm, height 200 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
15 kg
Consumption per 1 m2:
12,5 pcs
Quantity per pallet:
96 pcs
Weight of the pallet, including packaging:
1450 kg
-
Stavoblock FLAT
Size:
length 400 mm, height 100 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
7 kg
Consumption per 1 m2:
25 pcs
Quantity per pallet:
192 pcs
Weight of the pallet, including packaging:
1385 kg
-
Stavoblock STANDARD
Size:
length 200 mm, height 200 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
6,5 kg
Consumption per 1 m2:
25 pcs
Quantity per pallet:
192 pcs
Weight of the pallet, including packaging:
1270 kg
-
Stavoblock PONY
Size:
length 200 mm, height 100 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
3,4 kg
Consumption per 1 m2:
50 pcs
Quantity per pallet:
384 pcs
Weight of the pallet, including packaging:
1325 kg
-
Angled element
Size:
length 400 mm, height 200 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
20 kg
Consumption per 1 m2:
5 pcs
Quantity per pallet:
32 pcs right corners + 32 pcs left corners
Weight of the pallet, including packaging:
1300 kg
-
Coping unit (for staircases and retainig walls)
Size:
length 200 mm, height 75 mm, width 360 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
8,64 kg
Consumption per running meter:
5 pcs
Quantity per pallet:
48 pcs
Weight of the pallet, including packaging:
356 kg
-
Double join rod
Size:
length 392 mm, width 247 mm, height 200 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
15,5 kg
Consumption per 1 rm/m2:
2,5 pcs / 12,5 pcs
Quantity per pallet:
192 pcs
Weight of the pallet, including packaging:
1508 kg
-
Double join rod 100
Size:
length 392 mm, width 247 mm, height 100 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
7,8 kg
Consumption per 1 rm/m2:
5 pcs / 12,5 pcs
Quantity per pallet:
128 pcs
Weight of the pallet, including packaging:
1018 kg
-
Corner coupler
Size:
length 110 mm, width 146 mm, height 200 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
3,1 kg
Consumption per running meter:
5 pcs
Quantity per pallet:
144 pcs
Weight of the pallet, including packaging:
466 kg
-
T-coupler
Size:
length 140 mm, width 150 mm, height 200 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
3 kg
Consumption per running meter:
10 pcs
Quantity per pallet:
264 pcs
Weight of the pallet, including packaging:
800 kg
