Erosion Control Pavement, Pavement for Ponds and Banks
System for reinforcement of banks and bottoms of rivers, streams and dams.
TRI-LOCK blocks are suitable for unstable walls of riverbeds that are washed away with water.

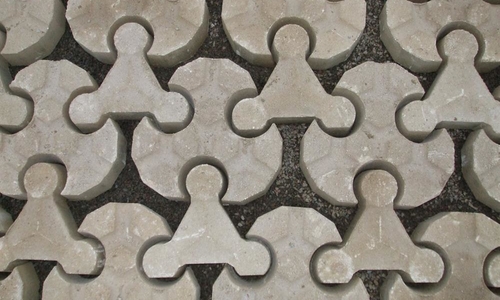

The TRI-LOCK system is a large-scale load pavement that is dry-assembled. The area of the pavement consists of two elements that are repetitive – a lock and a key that prevents any kind of movement. TRI-LOCK perfectly traces the terrain and has a high stability in waterway regulation. It can be grassed. The system can be used for parking areas, floor protection levees and polders and retention reservoirs and areas.

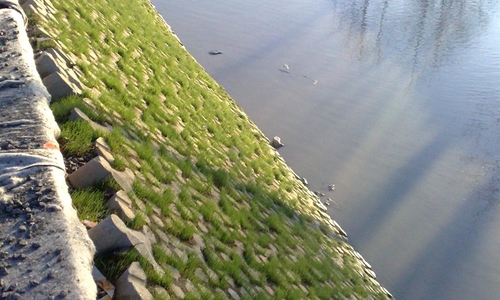

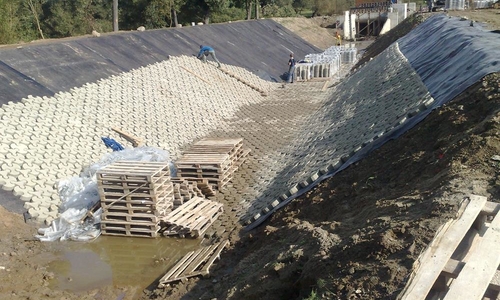

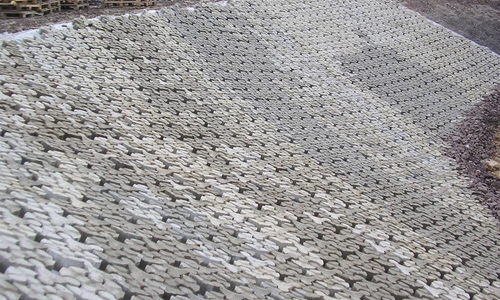

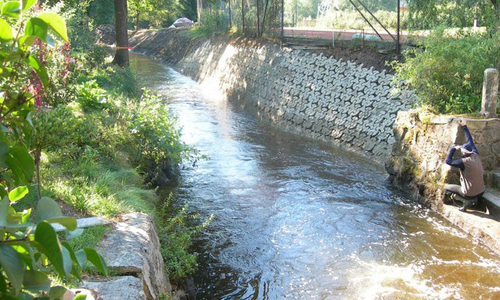

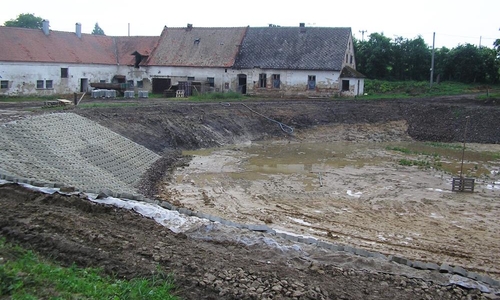

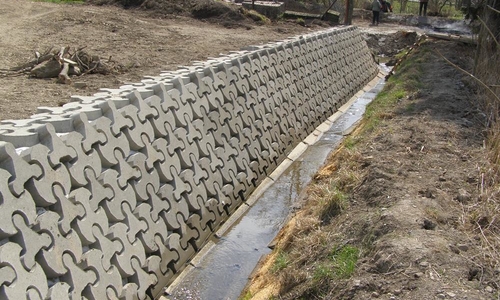

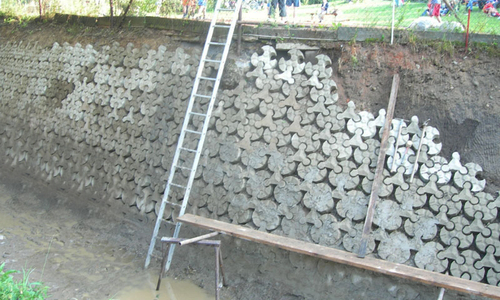

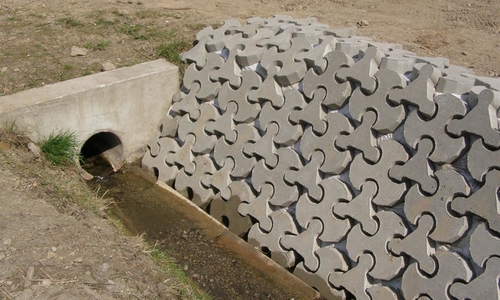

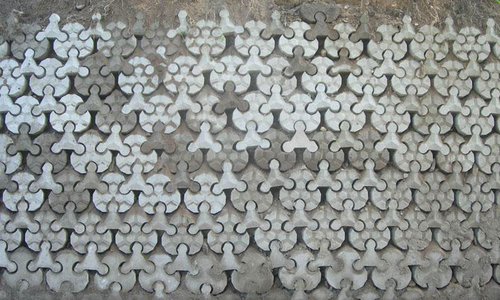

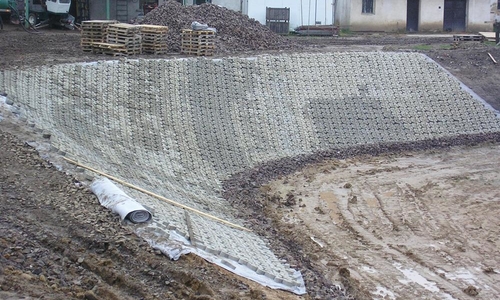

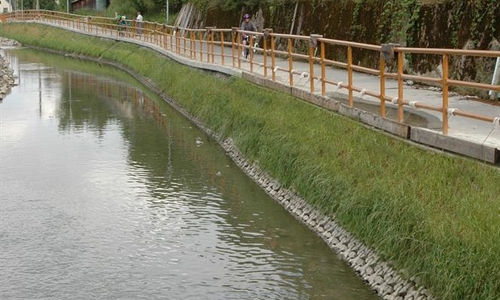

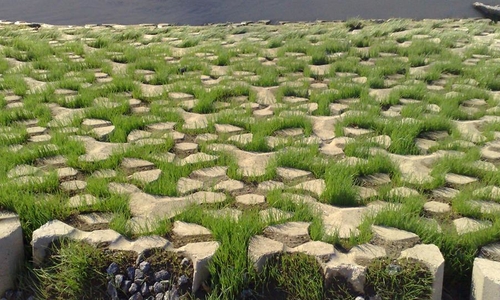

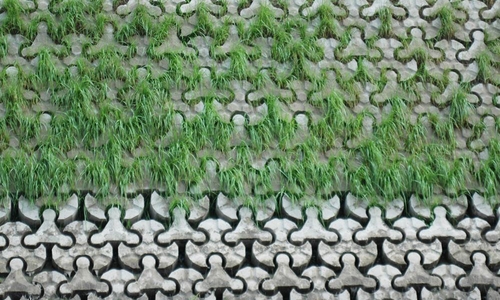

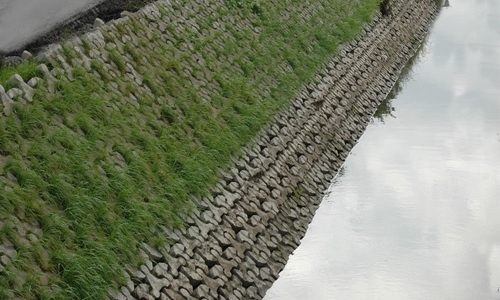

Photogallery of references
Colour variants
CAUTION: The colours are presented for reference only, the colour tone may slightly differ.
Technicial specifications
Material |
vibro-pressed color concrete |
Surface finish |
smooth, grooved |
Freeze resistance acc. to ČSN 731322 |
T25 |
Pressure strength acc. to ČSN ISO 4012 |
to 50 Mpa |
Volume weight |
2100 kg/m3 |
Absorption capacity acc. To ČSN 731316 |
4-5 % |

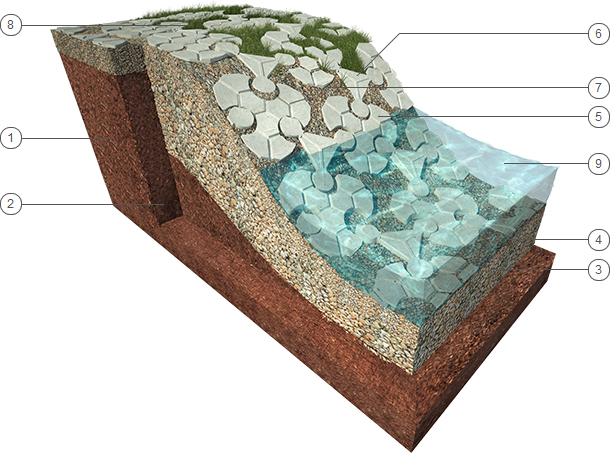

Model of construction
1.Original Terrain
2.Excavation for Gravel Bed
3.Compacted Gravel Bed
4.Compacted Gravel Bed - lower fraction
5.Joint Pavement Tri-Lock - Key Block
6.Joint Pavement Tri-Lock - Lock Block
7.Compacted Backfill - Gravel
8.Growing Green
9.Water Level
Building elements
CAUTION: The material consumption is for information only; it is based on a statistical calculation.
-
TRI-LOCK 100 mm - smooth
Size:
450 x 500 mm
(one module = key and lock)
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
28 kg
Consumption per 1 m2:
5,6 module
Quantity per pallet:
32 modules
Weight of the pallet, including packaging:
920 kg
-
TRI-LOCK 150 mm - smooth
Size:
450 x 500 mm
(one module = key and lock)
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
42 kg
Consumption per 1 m2:
5,6 module
Quantity per pallet:
28 modules
Weight of the pallet, including packaging:
1195 kg
-
TRI-LOCK 100 mm - grooved
Size:
450 x 500 mm
(one module = key and lock)
Size tolerance:
± 2,0 mm
Facing area:
grooved
Weight:
28 kg
Consumption per 1 m2:
5,6 module
Quantity per pallet:
32 modules
Weight of the pallet, including packaging:
920 kg
-
TRI-LOCK 150 mm - grooved
Size:
450 x 500 mm
(one module = key and lock)
Size tolerance:
± 2,0 mm
Facing area:
grooved
Weight:
42 kg
Consumption per 1 m2:
5,6 module
Quantity per pallet:
28 modules
Weight of the pallet, including packaging:
1195 kg
