Concrete fences
System for construction partition walls - concrete fences.
STAVOBLOCK is suitable for unfenced properties.
The STAVOBLOCK system includes garden walls of unlimited heights that are dry-assembled without the application of any mortar, adhesives and concrete. The wall can be designed as a continuous wall or as a standard fence with columns and fillings. The blocks are interlocked with dovetail joints. It is possible to include entrance gates, sliding gates, distributors and letter boxes. The system also allows for the construction of retaining walls and staircases.

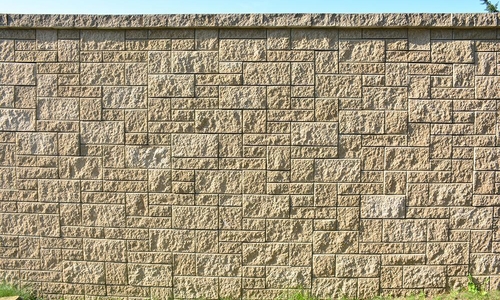

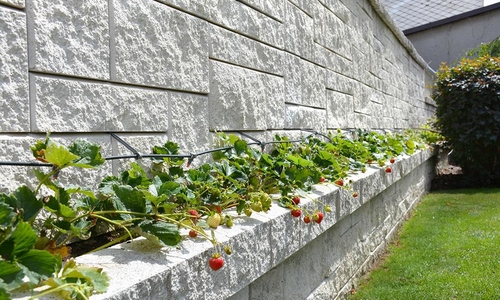

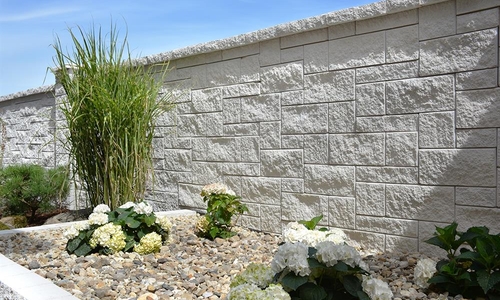

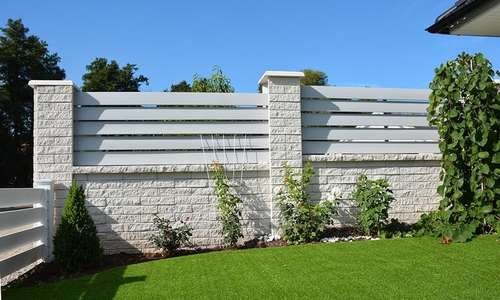

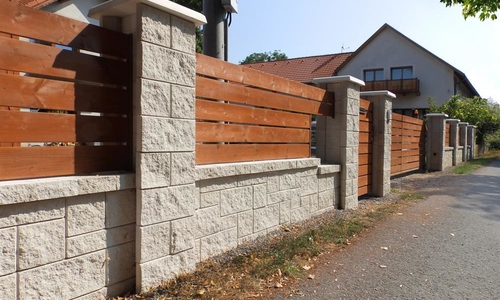

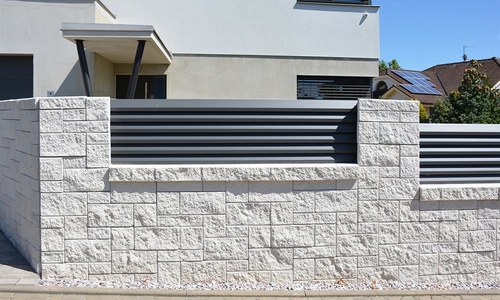

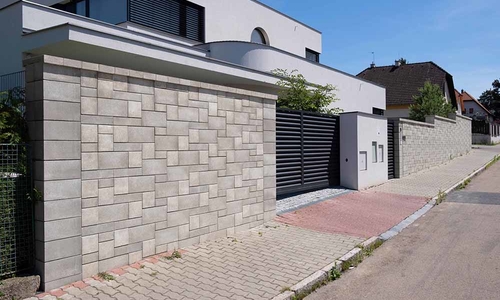

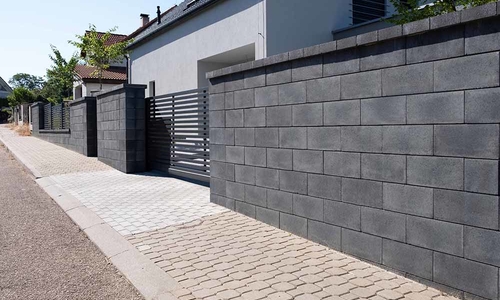

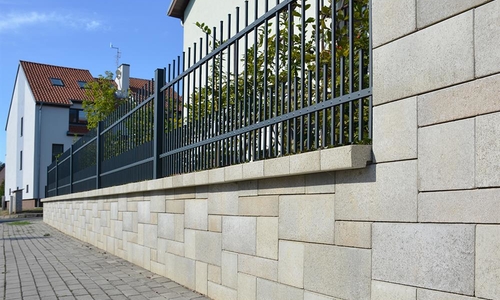

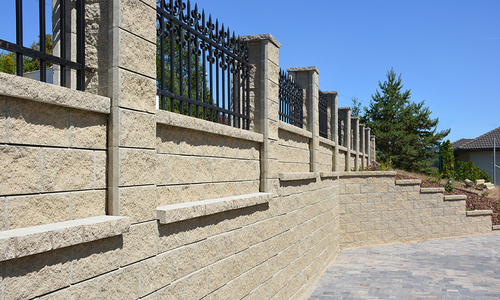

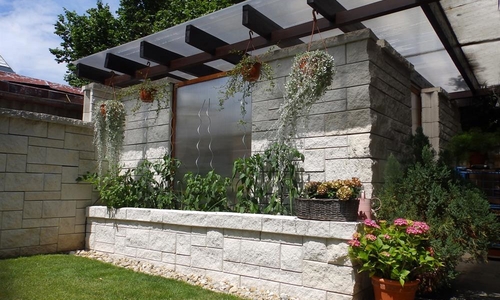

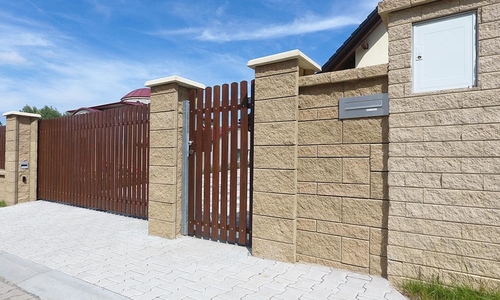

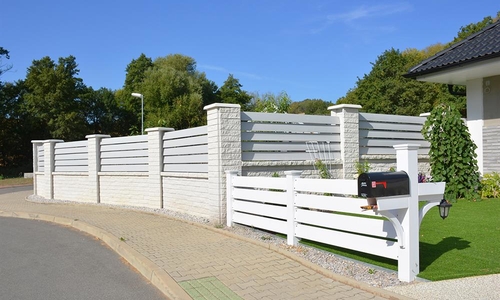

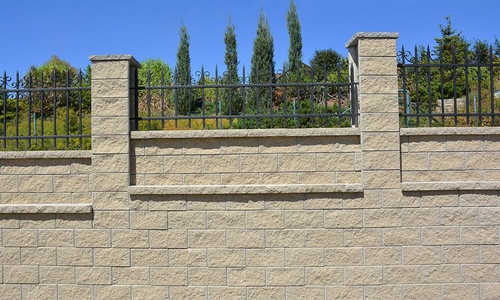

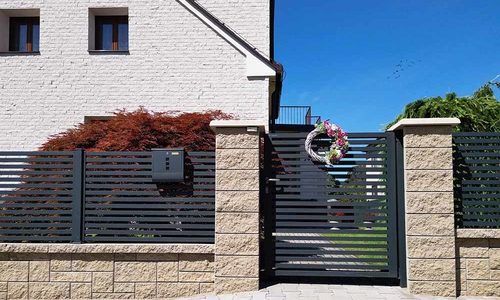

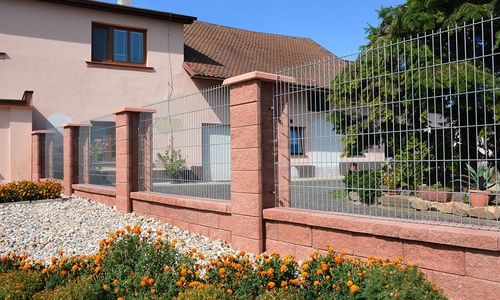

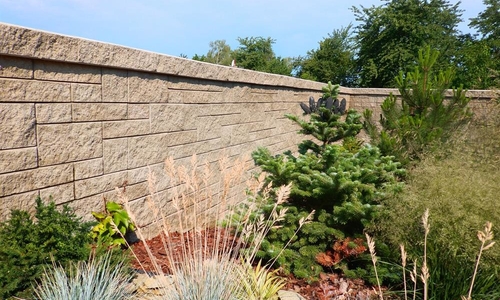

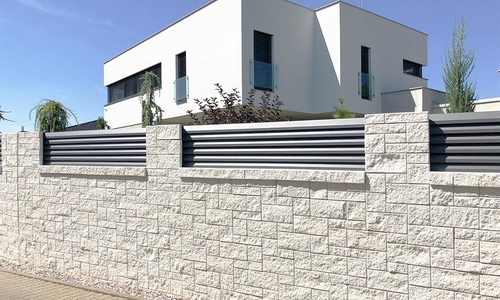

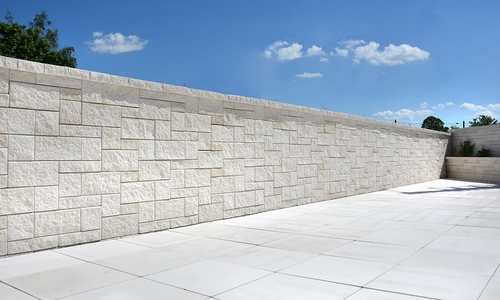

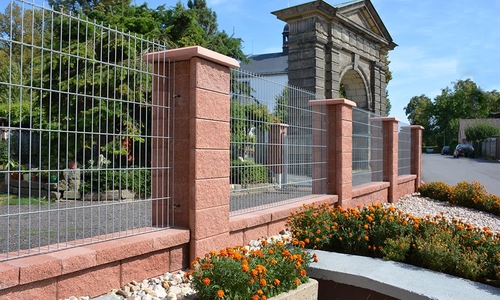

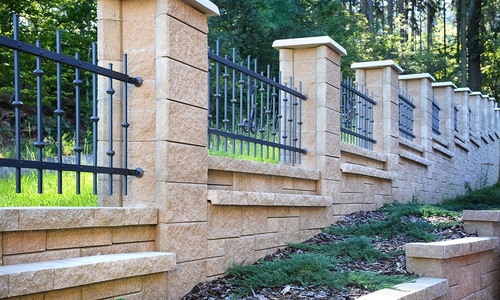

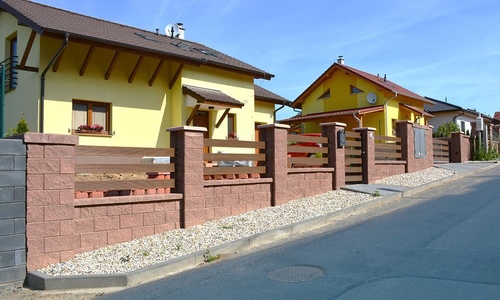

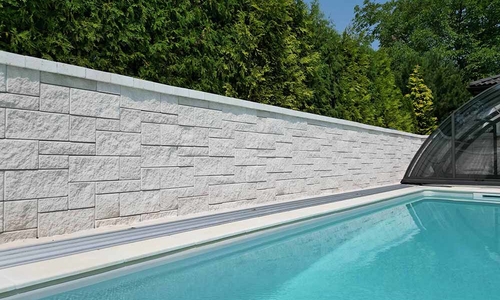

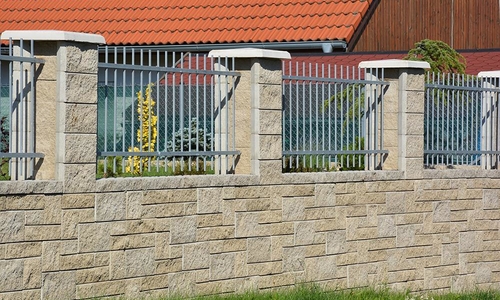

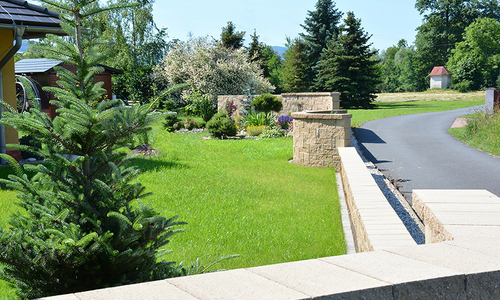

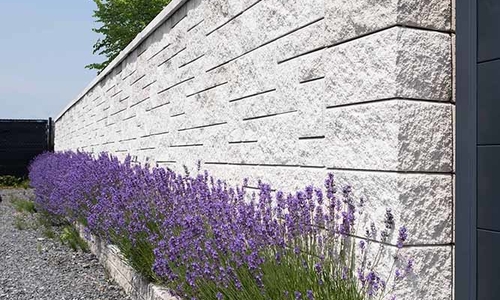

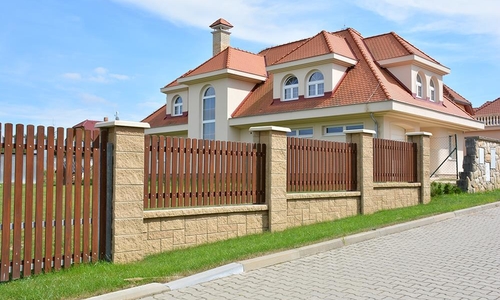

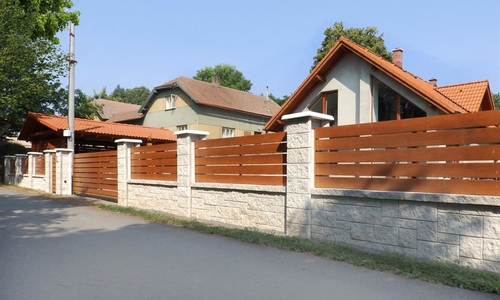

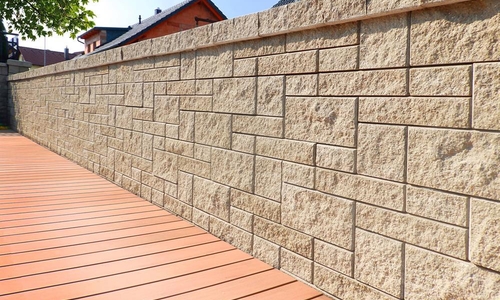

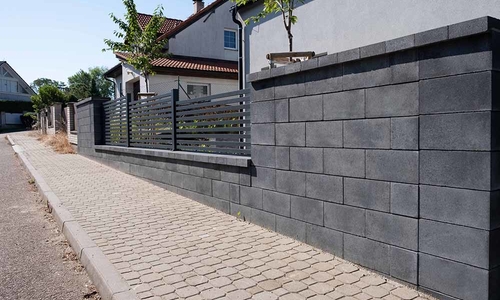

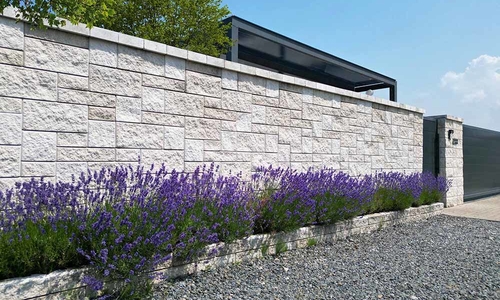

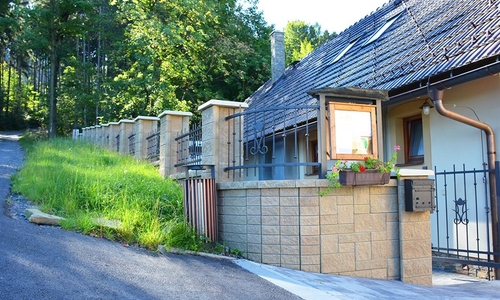

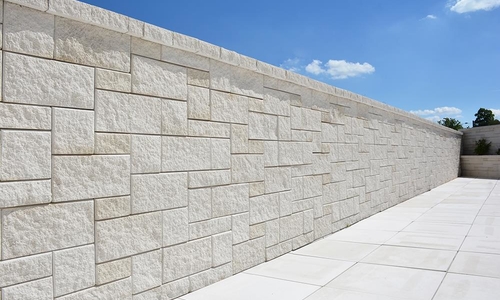

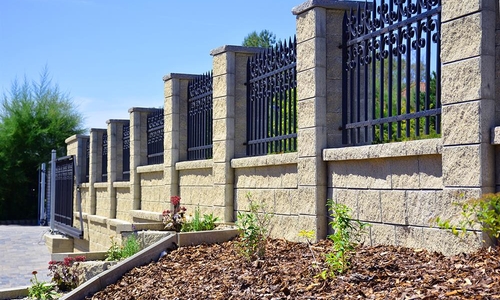

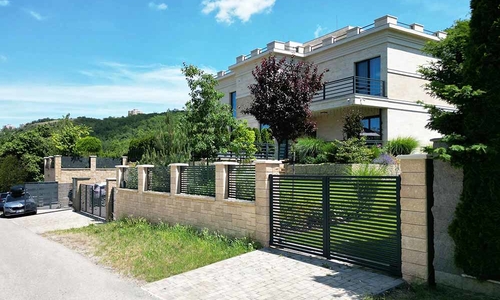

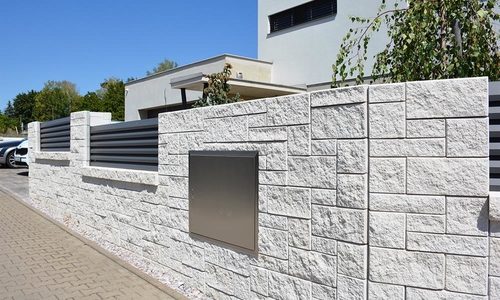

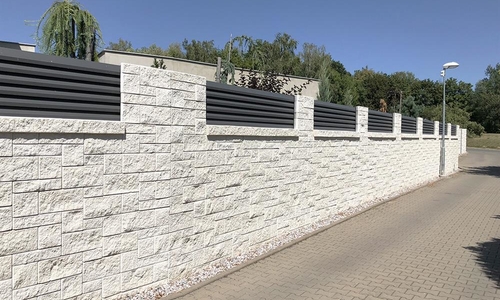

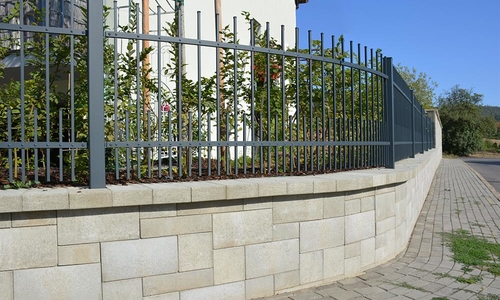

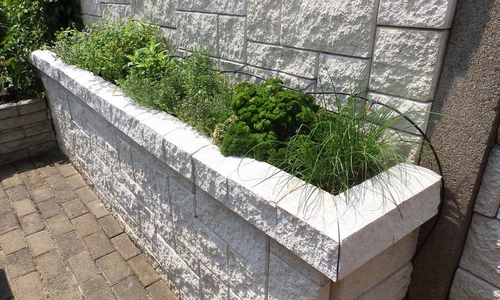

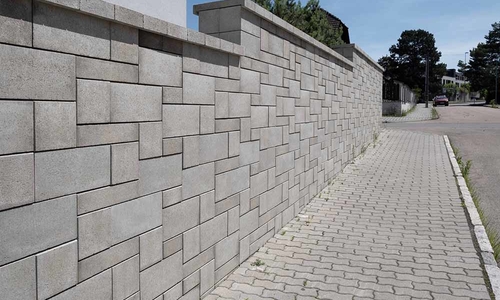

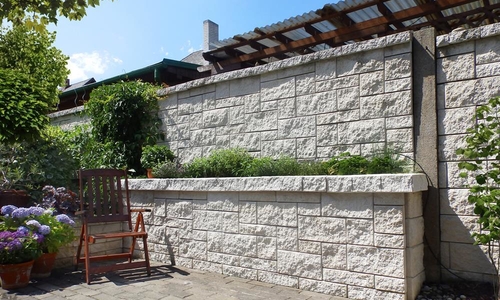

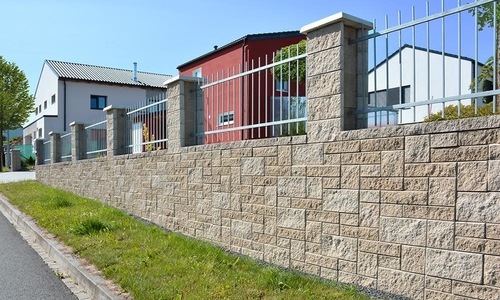

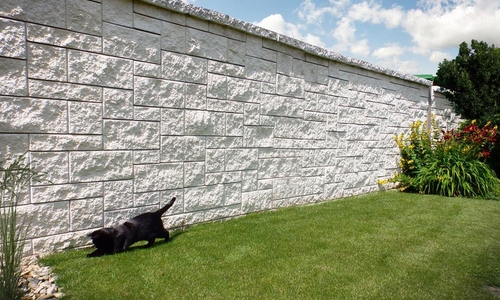

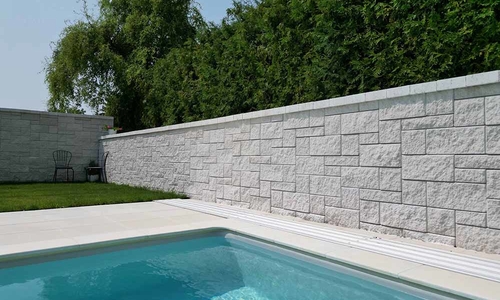

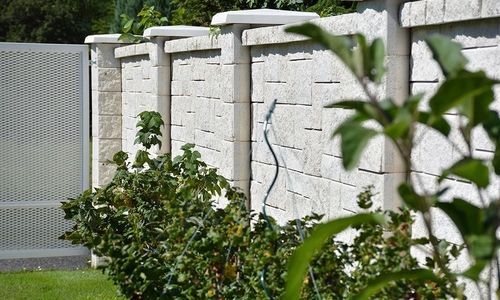

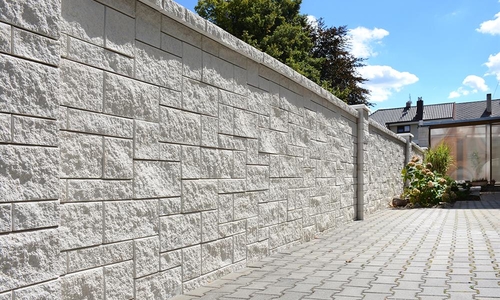

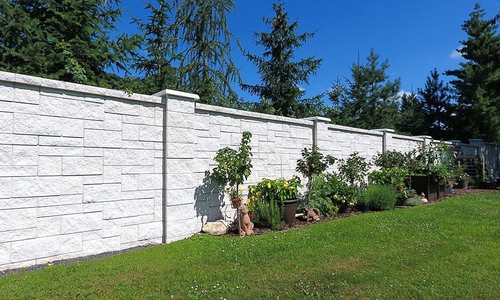

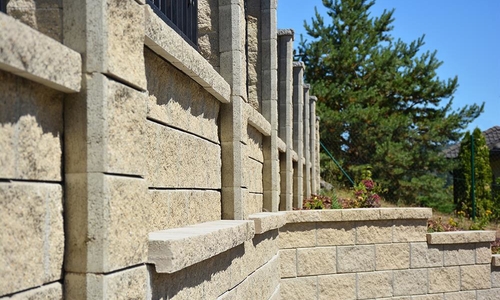

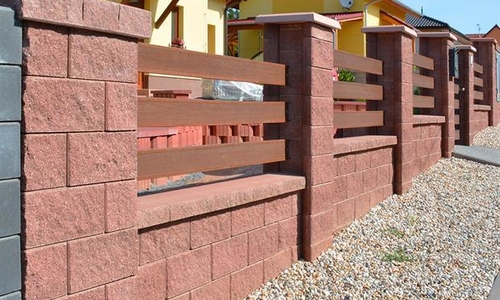

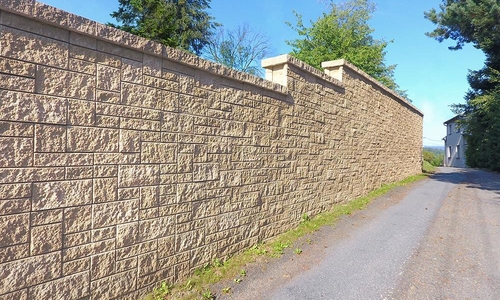

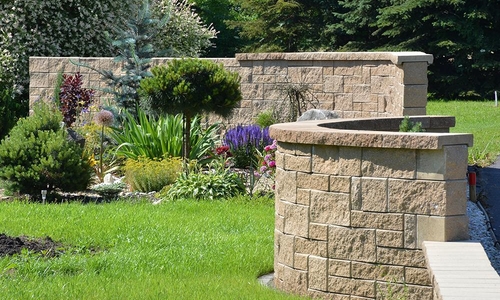

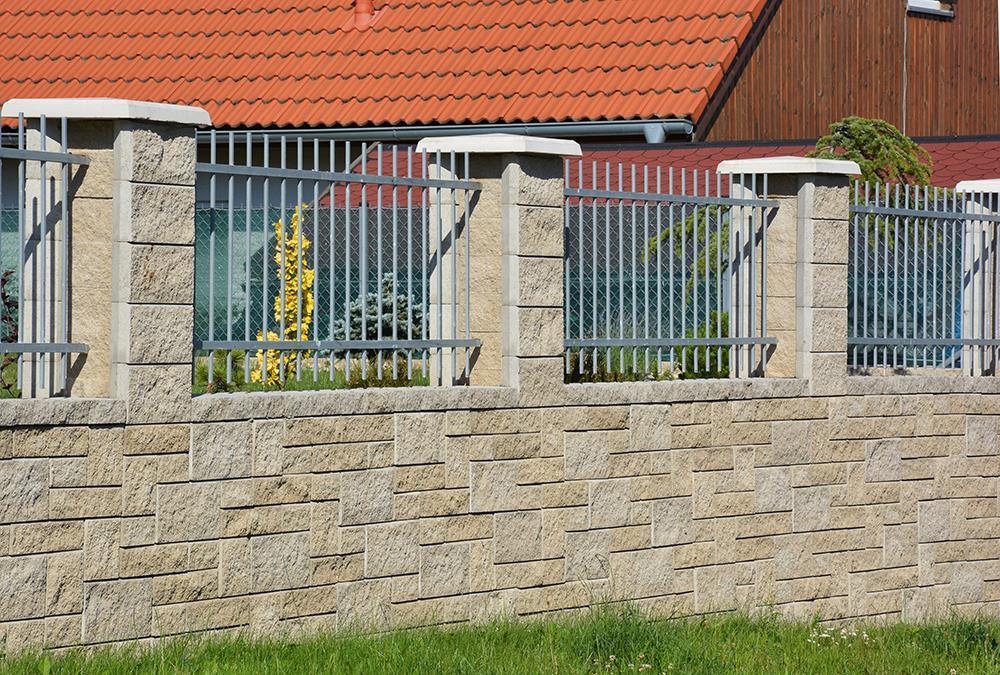

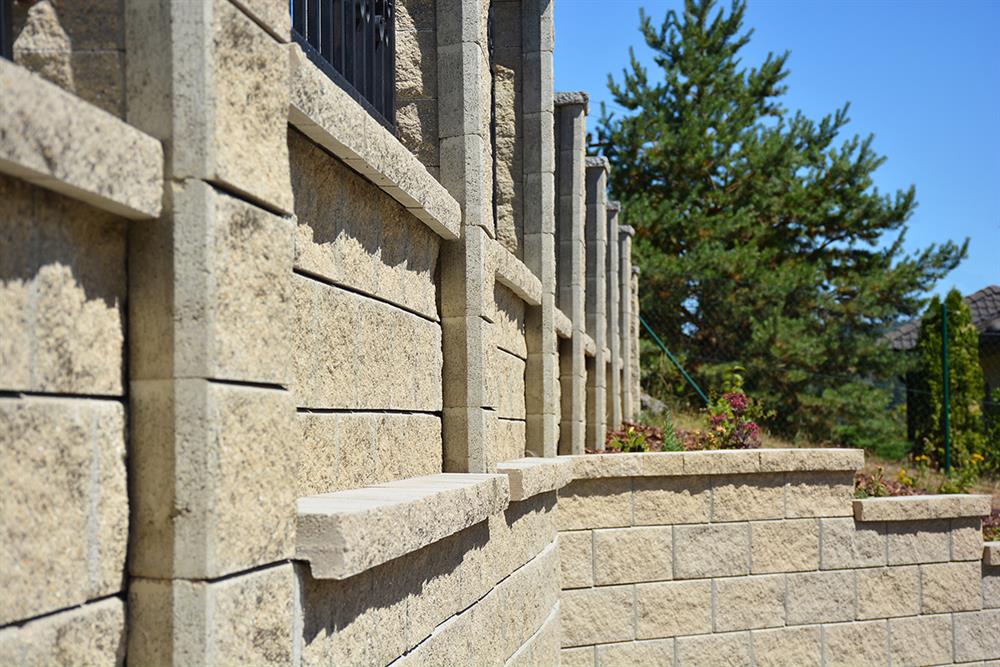

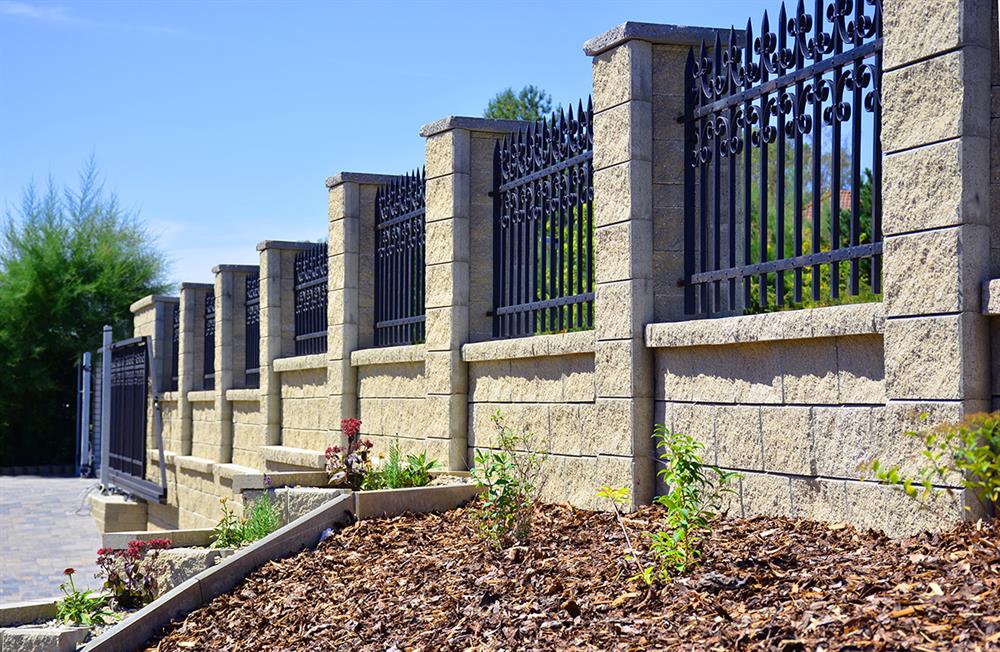

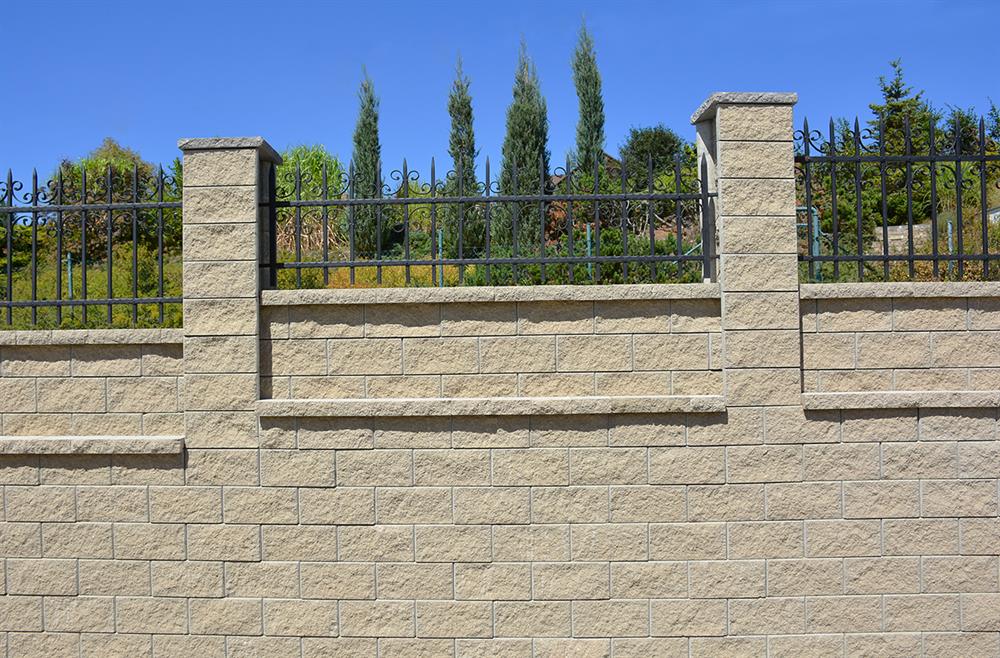

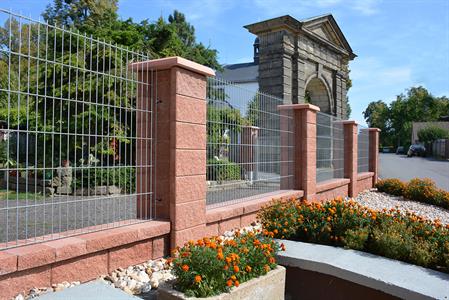

Photogallery of references
Colour variants
CAUTION: The colours are presented for reference only, the colour tone may slightly differ.
Technicial specifications
Material |
vibro-pressed color concrete |
Surface finish |
split, smooth |
Freeze resistance acc. to ČSN 731322 |
T25 |
Pressure strength acc. to ČSN ISO 4012 |
19,78 Mpa (Forming Elements), 7,5 Mpa (Anchoring Elements) |
Volume weight |
2100 kg/m3 |
Absorption capacity acc. To ČSN 731316 |
4-5 % |
Model of construction
1.Original Terrain
2.Excavation for Gravel Bed
3.Compacted Gravel Bed
4.Pillar from Forming Elelemts - Jumbo
5.Anchoring Elements - Long Coupler
6.Wall End Cap - Pillar Covering Plate
7.Forming Elements - Jumbo, Standard, Flat, Pony, Angled Element
8.Anchoring Elements - Short Coupler
9.Compacted Backfill - Gravel
10.Wall End Cap - Coping Unit
11.Fixing of Fence filling
Videos
Building elements
CAUTION: The material consumption is for information only; it is based on a statistical calculation.
-
Stavoblock JUMBO
Size:
length 400 mm, height 200 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
15 kg
Consumption per 1 m2:
12,5 pcs
Quantity per pallet:
96 pcs
Weight of the pallet, including packaging:
1450 kg
-
Stavoblock FLAT
Size:
length 400 mm, height 100 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
7 kg
Consumption per 1 m2:
25 pcs
Quantity per pallet:
192 pcs
Weight of the pallet, including packaging:
1385 kg
-
Stavoblock STANDARD
Size:
length 200 mm, height 200 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
6,5 kg
Consumption per 1 m2:
25 pcs
Quantity per pallet:
192 pcs
Weight of the pallet, including packaging:
1270 kg
-
Stavoblock PONY
Size:
length 200 mm, height 100 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
3,4 kg
Consumption per 1 m2:
50 pcs
Quantity per pallet:
384 pcs
Weight of the pallet, including packaging:
1325 kg
-
Angled element
Size:
length 400 mm, height 200 mm, width 100 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
20 kg
Consumption per 1 m2:
5 pcs
Quantity per pallet:
32 pcs right corners + 32 pcs left corners
Weight of the pallet, including packaging:
1300 kg
-
Angled coupler
Size:
length 250 mm, width 100 mm, height 200 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
8,5 kg
Consumption per running meter:
10 pcs
Quantity per pallet:
40 pcs right corners + 40 pcs left corners
Weight of the pallet, including packaging:
700 kg
-
Coping unit (for walls width of 200 mm)
Size:
length 200 mm, height 75 mm, width - both sides splitted 300 mm, - unilaterally splitted 330 mm, - smooth 360 mm
Size tolerance:
± 2,0 mm
Facing area:
split, smooth
Weight:
10 kg - smooth; 7 kg - split, grand
Consumption per running meter:
5 pcs
Quantity per pallet:
48 pcs
Weight of the pallet, including packaging:
356 kg
-
Coping unit (for walls width of 400 mm)
Size:
length 200 mm, height 75 mm, width 470 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
16,4 kg
Consumption per running meter:
5 pcs
Quantity per pallet:
24 pcs
Weight of the pallet, including packaging:
404 kg
-
Pillar covering plate 500x500
Size:
length 500 mm, width 500 mm, height 70 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
25 kg
Quantity per pallet:
2 pcs
Weight of the pallet, including packaging:
70 kg
Consumption:
1 pc
-
Pillar covering plate 500x250
Size:
length 500 mm, width 250 mm, height 70 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
18 kg
Quantity per pallet:
4 pcs
Weight of the pallet, including packaging:
87 kg
Consumption:
1 pc
-
T-coupler
Size:
length 140 mm, width 150 mm, height 200 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
3 kg
Consumption per running meter:
10 pcs
Quantity per pallet:
264 pcs
Weight of the pallet, including packaging:
800 kg
-
Long coupler
Size:
lenght 58 mm, width 245 mm, height 150 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
2,7 kg
Consumption per 1 m2:
25 pcs
Quantity per pallet:
192 pcs
Weight of the pallet, including packaging:
545 kg
-
Short coupler
Size:
lenght 58 mm, width 40 mm, height 150 mm
Size tolerance:
± 2,0 mm
Facing area:
smooth
Weight:
0,6 kg
Consumption per 1 m2:
25 pcs
Quantity per pallet:
512 pcs
Weight of the pallet, including packaging:
330 kg
