Facade for a family house

Breathable Insulation That Lasts a Lifetime

Perfectly ventilated STAVOBLOCK facade cladding provides breathable insulation and simultaneously dehumidifies the masonry. The lightweight and thin cladding made of natural materials gives the house an elegant and unique appearance. An ideal solution for new constructions as well as for the renovation of older buildings.

Each brick is individually suspended on a metal grid. The facade is thermally-insulated, waterproof, crack-resistant, and completely maintenance-free.

Invest in the appreciation of your property and be assured of a 100% return in the form of heating savings and long-term reduced maintenance costs.

Custom manufacturing. We utilize our own state-of-the-art technology, which allows, for example, the production of facade with a logo or family name.

Non-binding demand

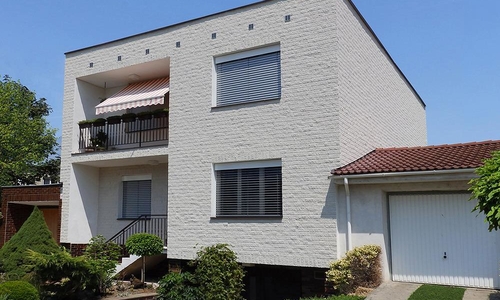

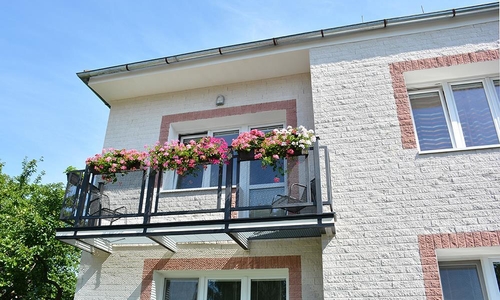

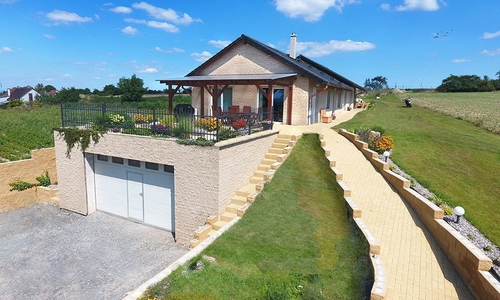

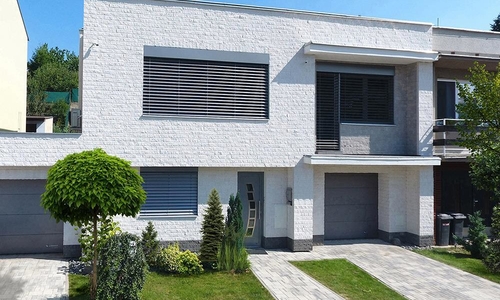

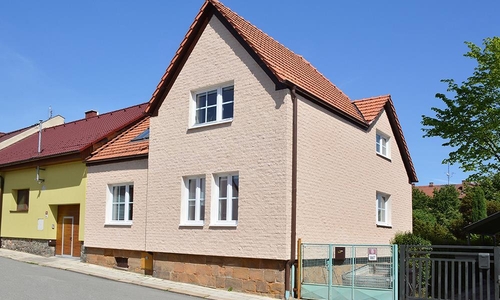

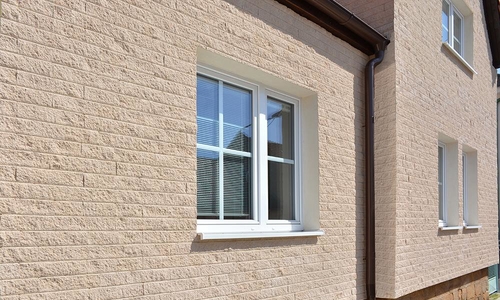

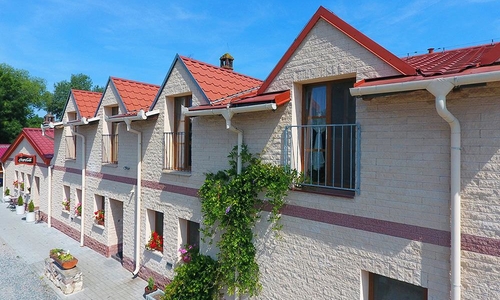

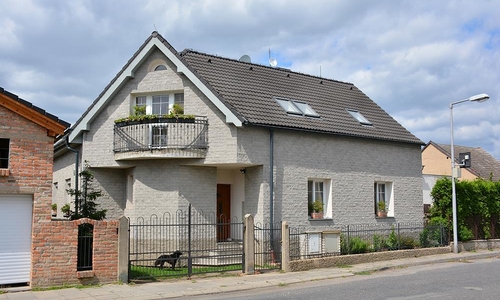

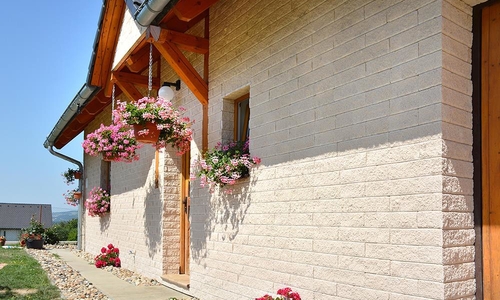

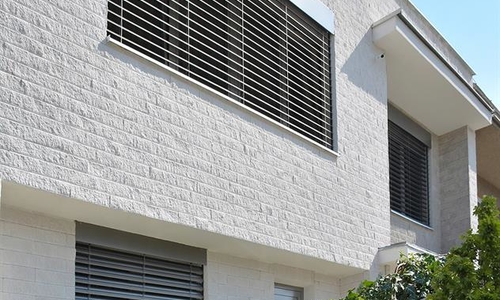

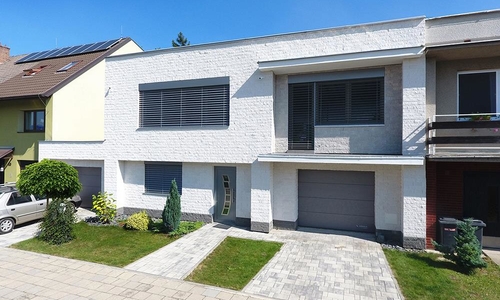

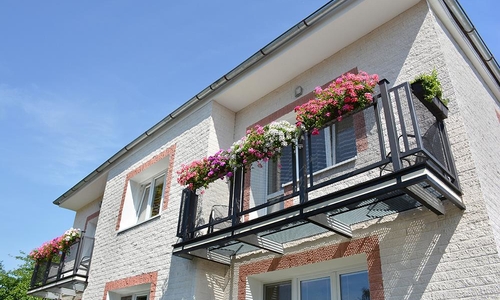

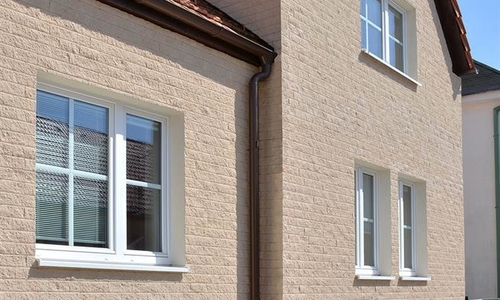

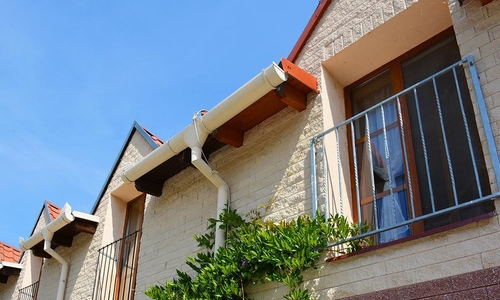

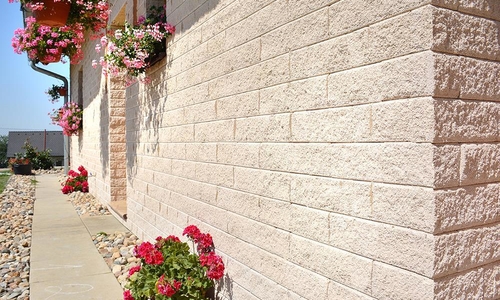

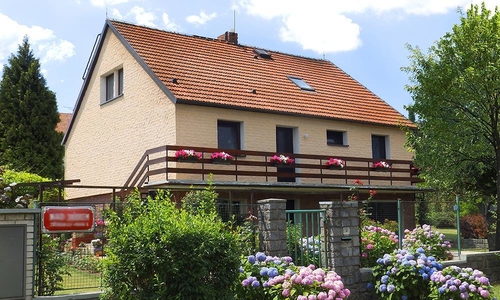

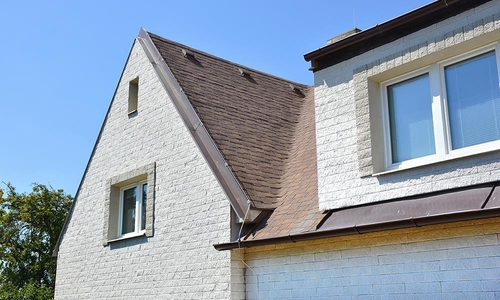

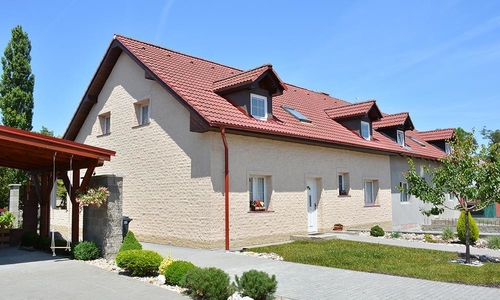

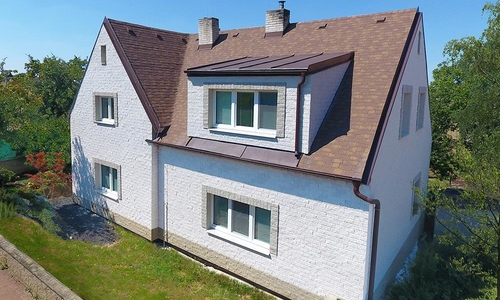

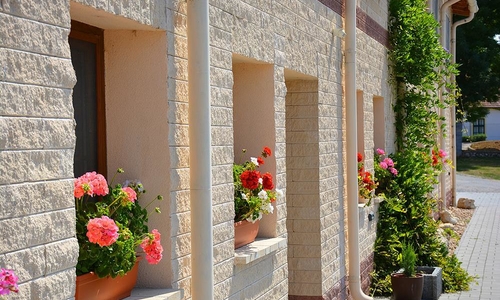

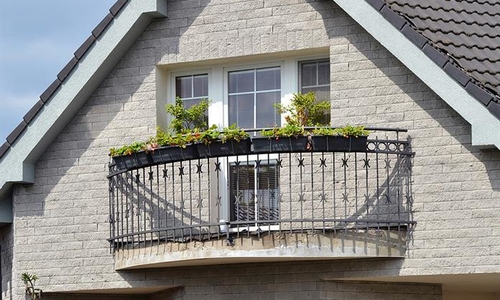

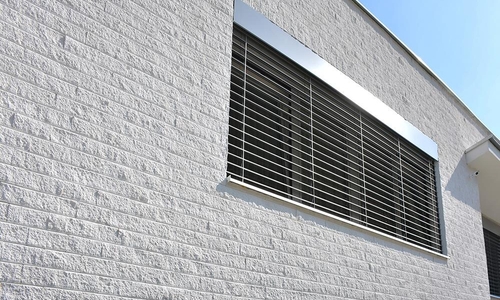

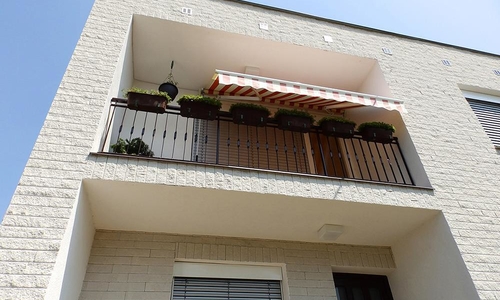

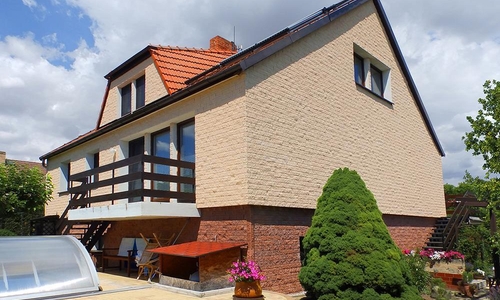

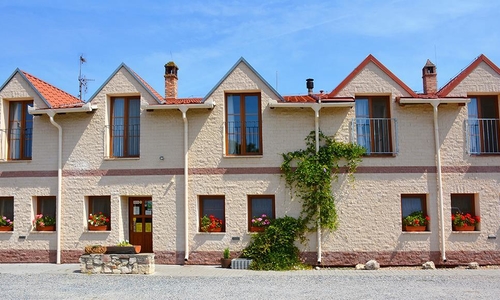

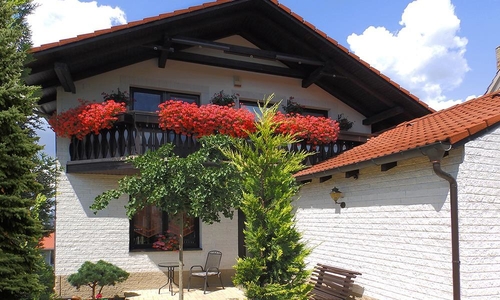

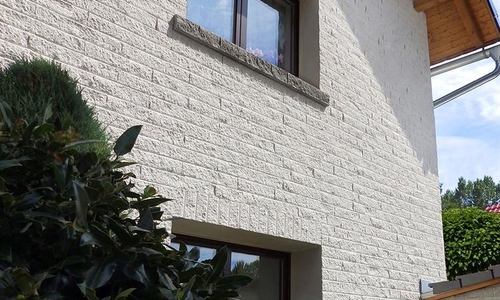

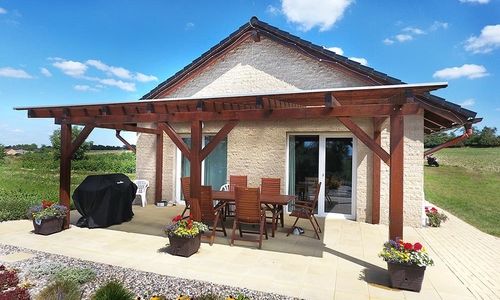

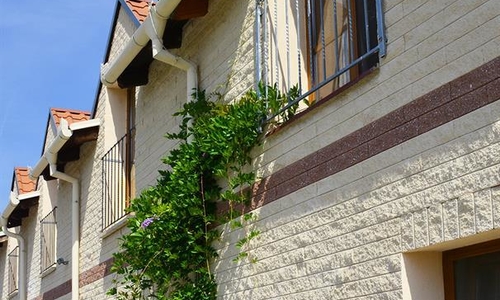

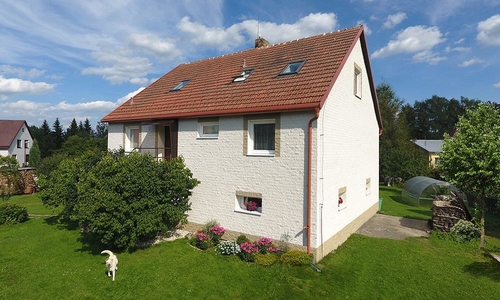

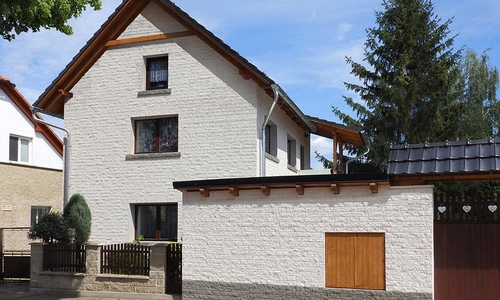

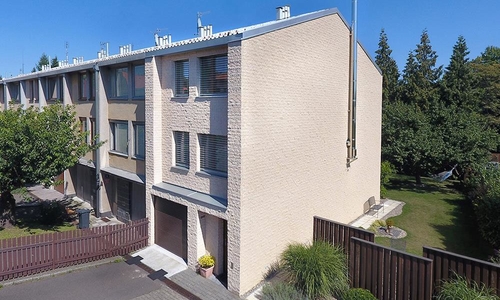

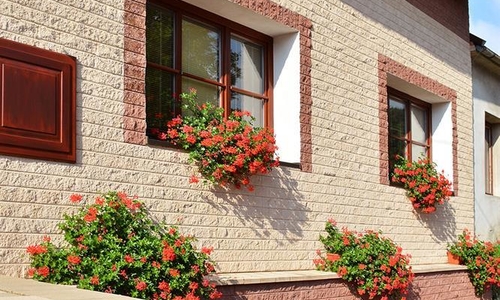

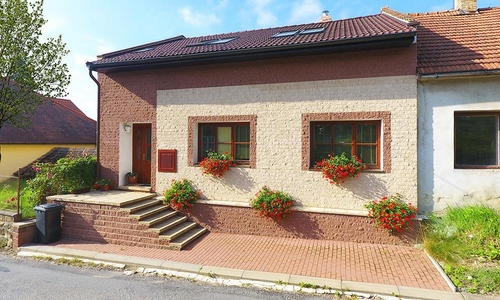

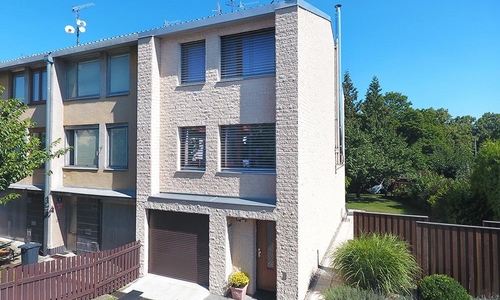

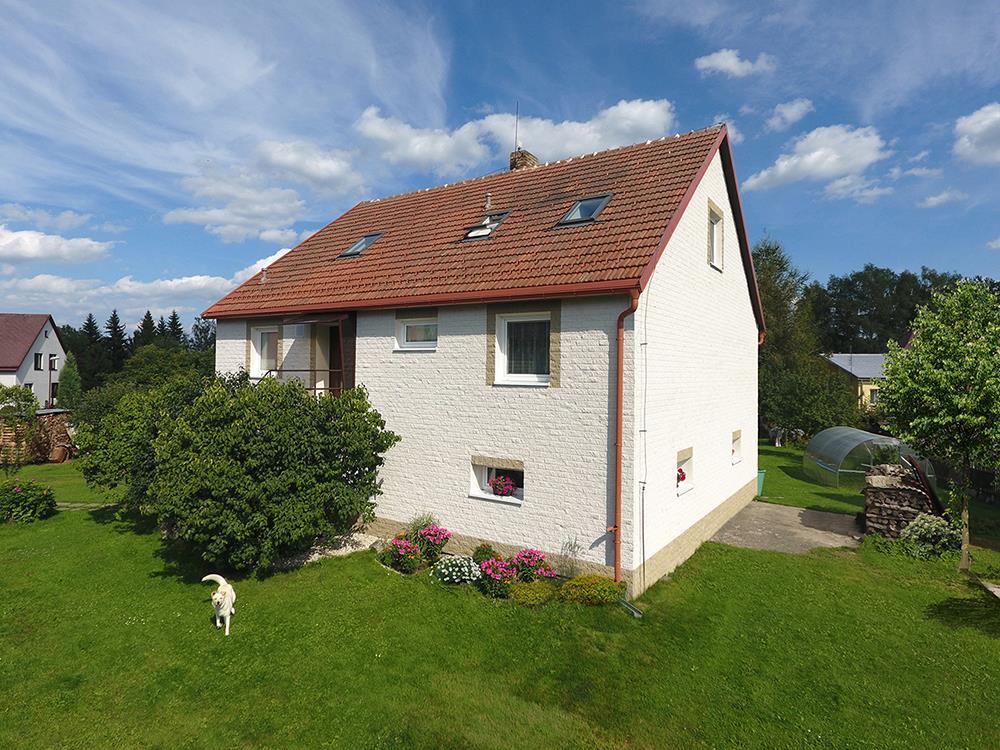

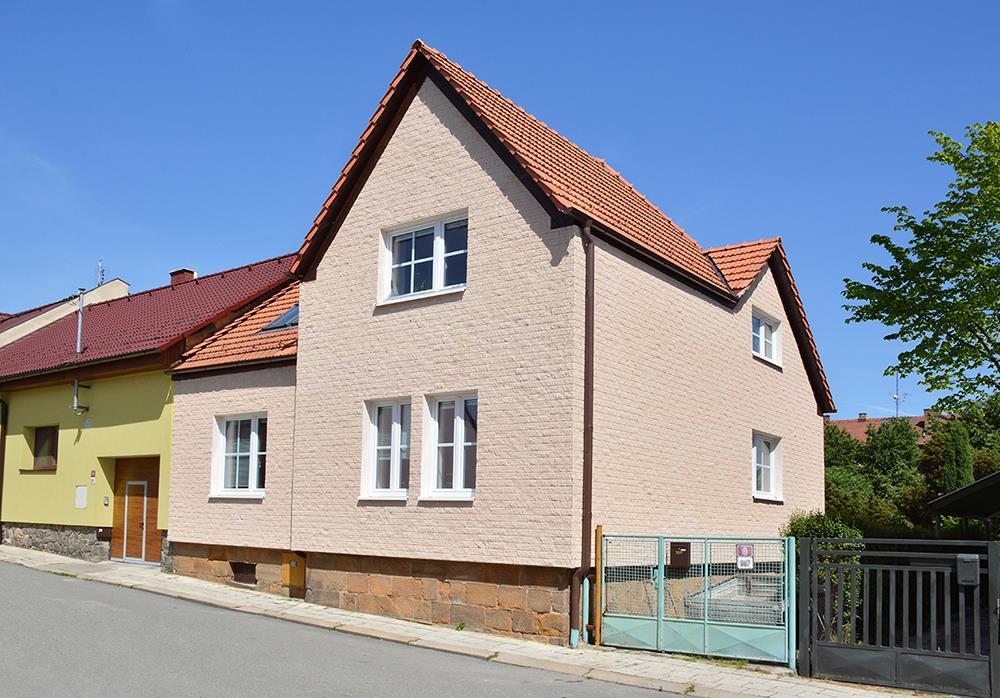

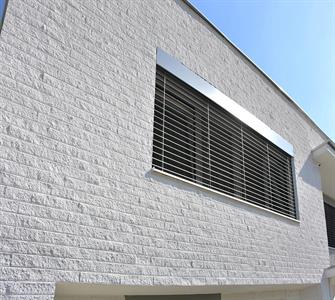

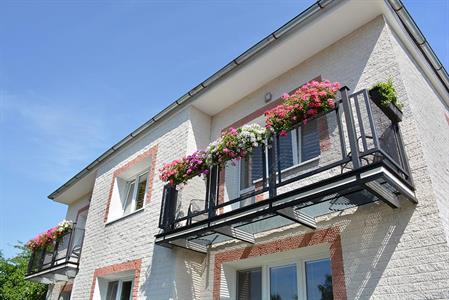

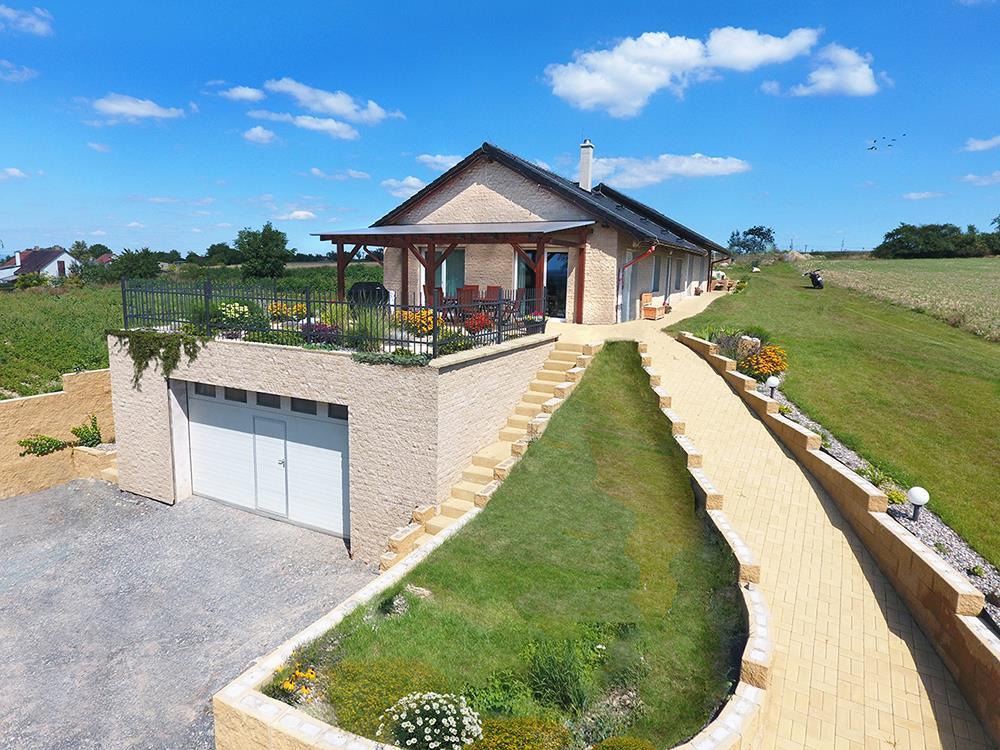

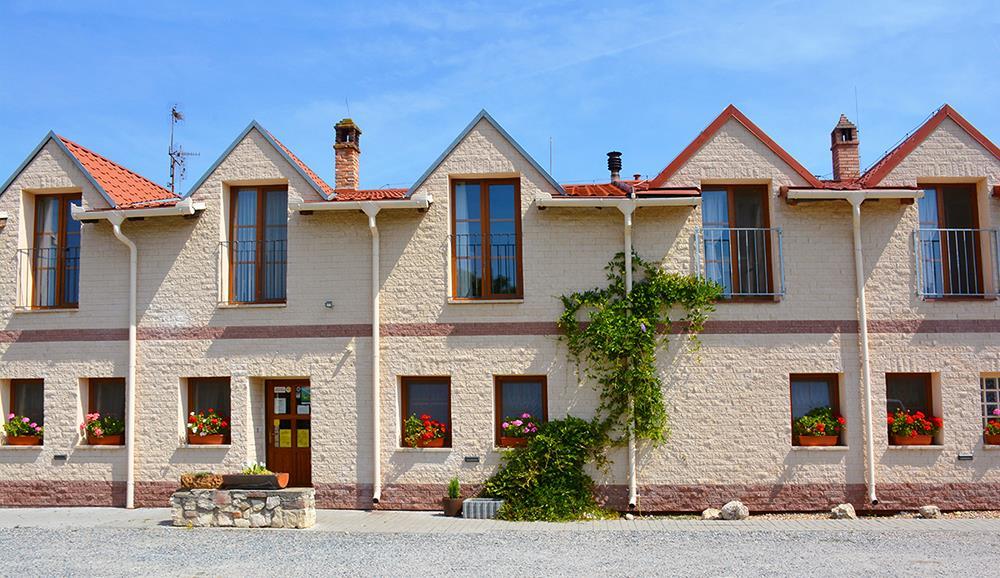

Photogallery of references

Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references Photogallery of references
Zobrazit všechny realizace

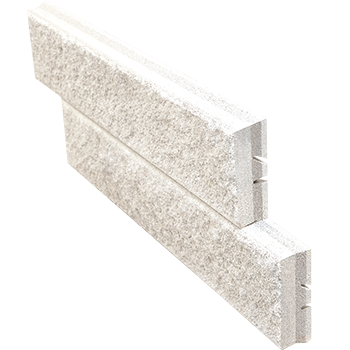

Facade for a family houseOwn product

Colour variants

CAUTION: The colours are presented for reference only, the colour tone may slightly differ.
(* přiřazení barvy dle vzorníku NCS pro dotační program NZÚ)

What do you get with Stavoblock

1THE MOST BEAUTIFUL HOUSE IN THE STREET

We guarantee quiet envy

2BREATHING IN A CLEAN ENVIRONMENT WITHOUT MOULDS

Healthy living for you and your children

3A PENNY SAVED IS A PENNY EARNED -> RETURN ON INVESTMENT

You will not have to deal with the facade at least for two generations

4FAMILY WEALTH

Leave valuable inheritance

5END OF WEEKENDS ON THE STEPLADDER

Spend your free time with the family

6A PENNY SAVED IS A PENNY EARNED -> SAVE A FORTUNE

Your heating bill will be lower

7QUIET HOME

Reduced noise from the neighbourhood or a busy street

8SAFE HOME

The facade that does not burn is a great protector

9SATISFACTION

.... with the selection of the facade cladding

Technicial specifications

Material vibropressed leightweight concrete
Surface finish split, smooth
Fire resistance min. 90 minutes
Weight of 1 pc 1,0 kg (±10%)
Volume weight 623 kg/m3 (±10%)
System thickness without air gap min. 40 mm, max. 350 mm
System thickness with air gap min. 60 mm, max. 350 mm
Thermal conductivity coefficient λ 0,066 W/mK
Vapour resistance µ 6,3
Brick dimensions 470 x 100 x 30 (l x h x w)
Number of bricks per m2 21
Noise attenuation up to 10 dB

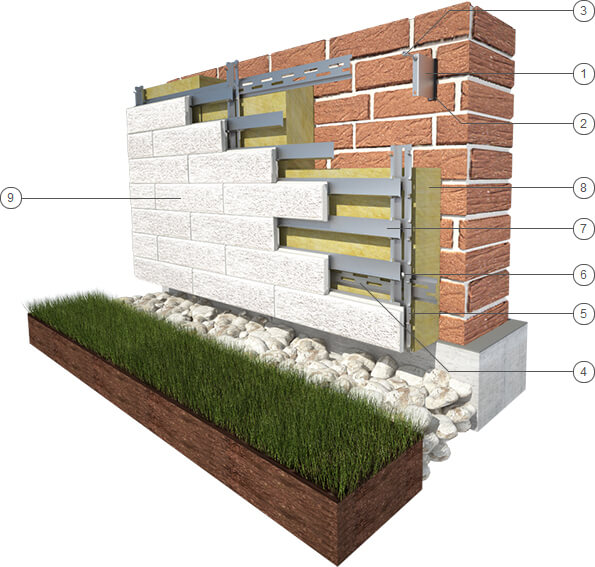

Model of construction

Model of construction
Model of construction water-resistant surface
1.Support profile attached to the masonry by Mungo Dowel and Threaded rod
2.Thermostop inserted between the angle bar and the masonry
3.2x Nut with serrated flange to attached vertical suspension Omega with Threaded rod
4.Horizontal Omega profile - load-bearing
5.Vertical Omega profile - load-bearing
6.Lag + Nut with serrated flange for connect crossing Omega bars
7.V-profile - load-bearing
8.Thermal insulation
9.Stavoblock Facade tile
Model of construction thin tile, thickness 3 cm elegant appearance
Model of construction open to moisture and water vapor difusion heathy living
Model of construction steel grid specially suggested max. stability
Model of construction each brick self-hanging max. safety
Model of construction non-flammable materials – A category highest fire resistance

Building elements

CAUTION: The material consumption is for information only; it is based on a statistical calculation.

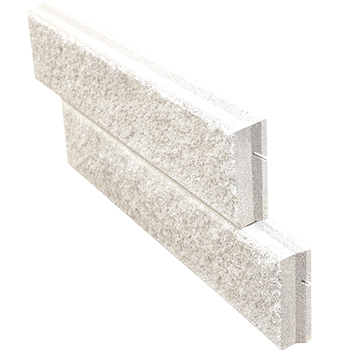

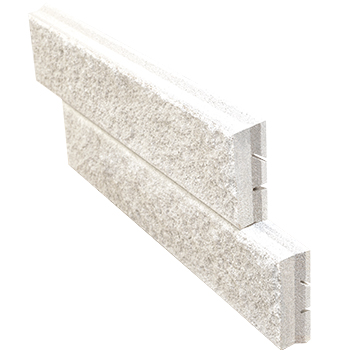

  • Stavoblock Facade brick

    Stavoblock Facade brick

    Size: width 30 mm, height 100 mm, length 470 mm, Size tolerance: ± 2 mm Surface finish : split, smooth Weight: 1,0 kg ±10% Quantity per pallet: 20 ks Weight of the pallet, including packaging: 20 kg Consumption: 21 ks / 1 m2
  • Window sill

    Window sill

    Size: width 200/300 mm, height 30 mm, length 470  mm Size tolerance: ± 2 mm Surface finish : smooth, front - split/smooth Weight: 3 kg Consumption per running meter: 2,1 pcs Quantity per pallet: 4 pcs
  • Mungo Dowel

    Mungo Dowel

    Size: MN 12x60 mm Weight: 0,005 kg Material: PVC Consumption: 3,2 ks / 1 m2
  • Threaded rod

    Threaded rod

    Size: M8 x 100 mm Weight: 0,020 kg Material: galvanized steel Consumption: 3,2 ks / 1 m2
  • Thermostop

    Thermostop

    Size: 25 x 100 x 5 mm Weight: 0,023 kg / 1 rm Material: PVC Consumption: 3 pcs / 1 m2
  • Supporting profile

    Supporting profile

    Size: width 80 mm, height 100 mm, length 15 mm Weight: 0,12 kg Material: galvanized steel Consumption: according to the project
  • Lag bolt

    Lag bolt

    Size: 6 HR M8 Weight: 0,003 kg Material: galvanized steel Consumption: 5 pcs / 1 m2
  • Nut with serrated flange

    Nut with serrated flange

    Size: M8x12 Weight: 0,007 kg Material: galvanized steel Consumption: 5 pcs / 1 m2
  • Suspended Omega bar (vertical)

    Suspended Omega bar (vertical)

    Size: width 61 mm, height 10 mm, length 2120 mm Weight: 1,418 kg Weight of the pallet, including packaging: 14,18 kg Material: galvanized steel Consumption: 2,45 pcs / 1 m2
  • Connecting piece of Omega bars

    Connecting piece of Omega bars

    Size: width 60 mm, height 60 mm Weight: 0,013 kg Material: galvanized steel Consumption: 3 pcs / 1 m2
  • Bearing Omega bar (horizontal)

    Bearing Omega bar (horizontal)

    Size: width 61 mm, height 10 mm, length 2100 mm Weight: 1,589 kg Weight of the pallet, including packaging: 15,9 kg Material: galvanized steel Consumption: 1 pcs / 1 m2
  • V profile

    V profile

    Size: length 2400 mm Weight: 0,573 kg Material: galvanized steel Consumption: 4,2 pcs / 1 m2 Packaging: 10 pcs
  • Connecting piece of V profile

    Connecting piece of V profile

    Size: width 60 mm, height 15 mm, length 80 mm Weight: 0,026 kg Material: galvanized steel Consumption: 11 pcs / 1 m2
  • Parapet profile

    Parapet profile

    Size: width 40 mm, height 40 mm, length 2120 mm Weight: 1,667 kg Material: galvanized steel Consumption: 0,5 pcs / 1 bm
  • Window profile

    Window profile

    Size: width 2 mm, height 72 mm, length 1500  mm Weight: 1,5 kg Material: galvanized steel Consumption: 0,66 pcs / 1 bm
  • Starter

    Starter

    Size: width 60 mm, height 15 mm, length 80 mm Weight: 0,025 kg Material: galvanized steel Consumption: 0,3 pcs / 1 m2 Packaging: 10 pcs
  • Expanded metal

    Expanded metal

    Size: according to the project Material: galvanized steel Consumption: according to the project
  • Adjustable extension L100

    Adjustable extension L100

    Size: width 50 mm, height 25 mm, length 100 mm Weight: 0,046 kg Material: galvanized steel Consumption: 3,2 pcs / 1 m2
