Sand smooth
Light gray smooth
Colorado smooth
TRI-LOCK 100 mm - smooth
Size: 450 x 500 mm(one module = key and lock) Size tolerance: ± 2,0 mm Facing area: smooth Weight: 28 kg Consumption per 1 m2: 5,6 module Quantity per pallet: 32 modules Weight of the pallet, including packaging: 920 kg
Menu
Search
Pavement for Reinforcing Flood Protection Levees and Polders
System for the construction of flood protection levees, polders and as reinforcement of slopes.
TRI-LOCK blocks are suitable for unstable slopes and flood areas.

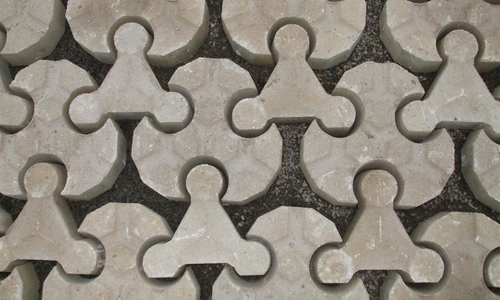

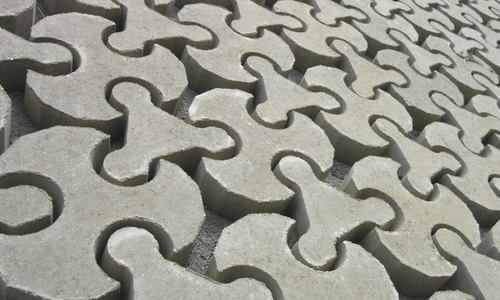

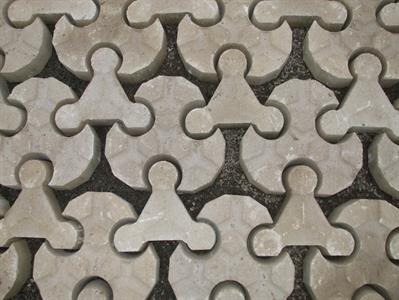

The TRI-LOCK system is a large-scale load pavement that is dry-assembled. The area of the pavement consists of two elements that are repetitive – a lock and a key. TRI-LOCK can perfectly reinforce terrain, it is a permanent netting below the terrain that works as reinforcement. It can be covered with soil, grassed and planted with trees and shrubs. (Note: slopes can be reinforced with TRI-LOCK up to 30° - we recommend using a retaining wall for steeper slopes). The system can be used for parking areas, reinforcement of the banks of rivers and retention reservoirs and areas.

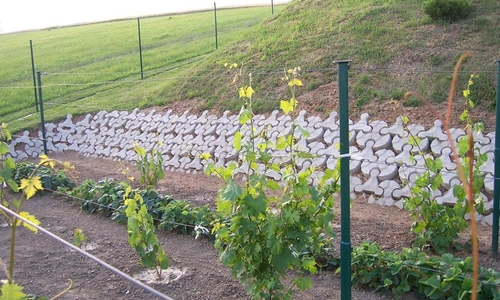

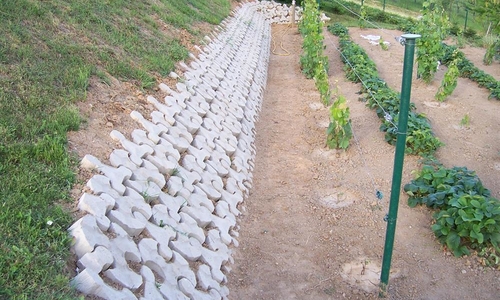

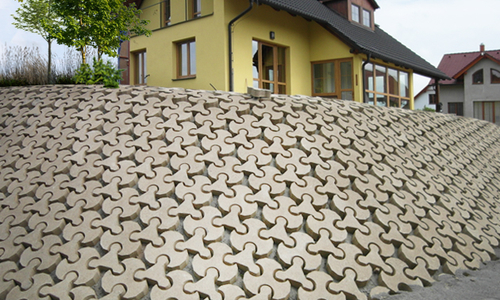

Photogallery of references
Colour variants
CAUTION: The colours are presented for reference only, the colour tone may slightly differ.
Technicial specifications
| Material | vibro-pressed color concrete |
| Surface finish | smooth, grooved |
| Freeze resistance acc. to ČSN 731322 | T25 |
| Pressure strength acc. to ČSN ISO 4012 | to 50 Mpa |
| Volume weight | 2100 kg/m3 |
| Absorption capacity acc. To ČSN 731316 | 4-5 % |

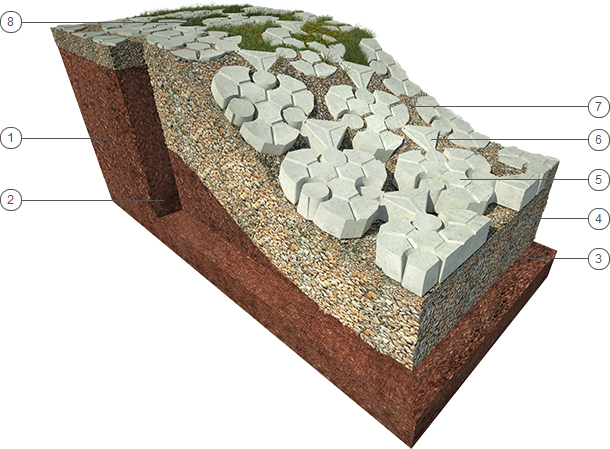

Model of construction
1.Original Terrain
2.Excavation for Gravel Bed
3.Compacted Gravel Bed
4.Compacted Gravel Bed - lower fraction
5.Joint Pavement Tri-Lock - Key Block
6.Joint Pavement Tri-Lock - Lock Block
7.Compacted Backfill - Gravel
8.Growing Green
Building elements
CAUTION: The material consumption is for information only; it is based on a statistical calculation.
-
(one module = key and lock) Size tolerance: ± 2,0 mm Facing area: smooth Weight: 28 kg Consumption per 1 m2: 5,6 module Quantity per pallet: 32 modules Weight of the pallet, including packaging: 920 kg -
TRI-LOCK 150 mm - smooth
Size: 450 x 500 mm
(one module = key and lock) Size tolerance: ± 2,0 mm Facing area: smooth Weight: 42 kg Consumption per 1 m2: 5,6 module Quantity per pallet: 28 modules Weight of the pallet, including packaging: 1195 kg -
TRI-LOCK 100 mm - grooved
Size: 450 x 500 mm
(one module = key and lock) Size tolerance: ± 2,0 mm Facing area: grooved Weight: 28 kg Consumption per 1 m2: 5,6 module Quantity per pallet: 32 modules Weight of the pallet, including packaging: 920 kg -
TRI-LOCK 150 mm - grooved
Size: 450 x 500 mm
(one module = key and lock) Size tolerance: ± 2,0 mm Facing area: grooved Weight: 42 kg Consumption per 1 m2: 5,6 module Quantity per pallet: 28 modules Weight of the pallet, including packaging: 1195 kg
Downloads
- PDF - 660 KB Catalogue sheet TriLock
- PDF - 248 KB Product specification Tri Lock
- PDF - 5 MB Installation Guide Tri-Lock
