Facade cladding

Breathable Insulation That Lasts a Lifetime

The STAVOBLOCK facade cladding is ideal for the insulation of newly constructed buildings, residential, apartment and prefabricated homes as well as reconstructed older buildings. Facade cladding provides excellent thermal and moisture conditions for living without any mould.

The STAVOBLOCK heat insulation facade is an elegantly thin facade cladding, dry-assembled to a metal grate. Its properties help you save time and money spent on heating and maintenance related to future repairs and coating.

Photogallery of references

Colour variants

CAUTION: The colours are presented for reference only, the colour tone may slightly differ.

What do you get with Stavoblock

1THE MOST BEAUTIFUL HOUSE IN THE STREET

We guarantee quiet envy

2BREATHING IN A CLEAN ENVIRONMENT WITHOUT MOULDS

Healthy living for you and your children

3A PENNY SAVED IS A PENNY EARNED -> RETURN ON INVESTMENT

You will not have to deal with the facade at least for two generations

4FAMILY WEALTH

Leave valuable inheritance

5END OF WEEKENDS ON THE STEPLADDER

Spend your free time with the family

6A PENNY SAVED IS A PENNY EARNED -> SAVE A FORTUNE

Your heating bill will be lower

7QUIET HOME

Reduced noise from the neighbourhood or a busy street

8SAFE HOME

The facade that does not burn is a great protector

9SATISFACTION

.... with the selection of the facade cladding

Technicial specifications

Material vibropressed leightweight concrete
Surface finish split, smooth
Fire resistance min. 90 minutes
Weight of 1 pc 1,0 kg (±10%)
Volume weight 700 kg/m3 (±10%)
System thickness without air gap min. 40 mm, max. 350 mm
System thickness with air gap min. 60 mm, max. 350 mm
Thermal conductivity coefficient λ 0,066 W/mK
Vapour resistance µ 3,0
Brick dimensions 470 x 100 x 30 (l x h x w)
Number of bricks per m2 21
Noise attenuation up to 10 dB

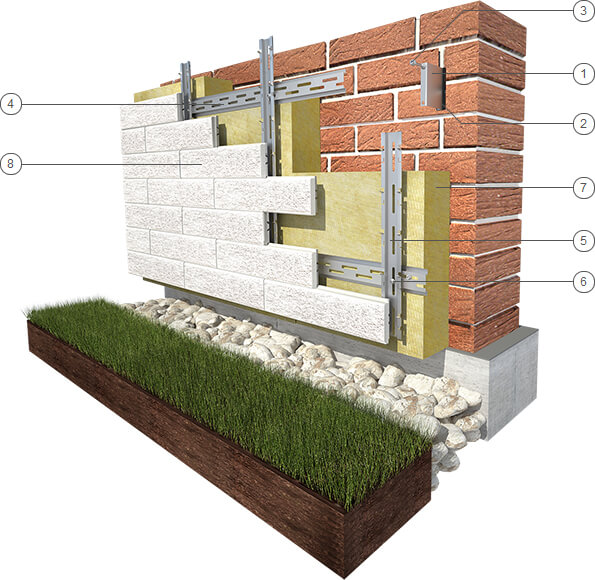

Model of construction

Model of construction
Model of construction water-resistant surface
1.Support profile attached to the masonry by Mungo Dowel and Threaded rod
2.Thermostop inserted between the angle bar and the masonry
3.2x Nut with serrated flange to attached vertical suspension Omega with Threaded rod
4.Steal bearing Omega bar - vertical
5.Steal suspension Omega bar - horizontal
6.Lag bolt + Nut with serrated flange for connect crossing Omega bars
7.Thermal insulation
8.Stavoblock Facade tile
Model of construction thin tile, thickness 3 cm elegant appearance
Model of construction open to moisture and water vapor difusion heathy living
Model of construction steel grid specially suggested max. stability
Model of construction each brick self-hanging max. safety
Model of construction non-flammable materials – A category highest fire resistance

Building elements

CAUTION: The material consumption is for information only; it is based on a statistical calculation.
  • Stavoblock Facade brick

    Stavoblock Facade brick

    Size: width 30 mm, height 100 mm, length 470 mm, Size tolerance: ± 2 mm Surface finish : split, smooth Weight: 1,0 kg ±10% Quantity per pallet: 20 ks Weight of the pallet, including packaging: 20 kg Consumption: 21 ks / 1 m2
  • Window sill

    Window sill

    Size: width 200/300 mm, height 30 mm, length 470  mm Size tolerance: ± 2 mm Surface finish : smooth, front - split/smooth Weight: 3 kg Consumption per running meter: 2,1 pcs Quantity per pallet: 4 pcs
  • Mungo Dowel

    Mungo Dowel

    Size: MN 12x60 mm Weight: 0,005 kg Material: PVC Consumption: 3,2 ks / 1 m2
  • Threaded rod

    Threaded rod

    Size: M8 x 100 mm Weight: 0,020 kg Material: galvanized steel Consumption: 3,2 ks / 1 m2
  • Thermostop

    Thermostop

    Size: 25 x 100 x 5 mm Weight: 0,023 kg / 1 rm Material: PVC Consumption: 3 pcs / 1 m2
  • Supporting profile

    Supporting profile

    Size: width 80 mm, height 100 mm, length 15 mm Weight: 0,12 kg Material: galvanized steel Consumption: according to the project
  • Lag bolt

    Lag bolt

    Size: 6 HR M8 Weight: 0,003 kg Material: galvanized steel Consumption: 5 pcs / 1 m2
  • Nut with serrated flange

    Nut with serrated flange

    Size: M8x12 Weight: 0,007 kg Material: galvanized steel Consumption: 5 pcs / 1 m2
  • Suspended Omega bar (vertical)

    Suspended Omega bar (vertical)

    Size: width 61 mm, height 20 mm, length 2120 mm Weight: 1,418 kg Weight of the pallet, including packaging: 14,18 kg Material: galvanized steel Consumption: 2,45 pcs / 1 m2
  • Bearing Omega bar (horizontal)

    Bearing Omega bar (horizontal)

    Size: width 61 mm, height 20 mm, length 2110 mm Weight: 1,589 kg Weight of the pallet, including packaging: 15,9 kg Material: galvanized steel Consumption: 1 pcs / 1 m2
  • Connecting piece of Omega bars

    Connecting piece of Omega bars

    Size: width 1,5 mm, height 38 mm, length 120 mm Weight: 0,068 kg Material: galvanized steel Consumption: 1,6 pcs / 1 m2
  • Parapet profile

    Parapet profile

    Size: width 40 mm, height 40 mm, length 2120 mm Weight: 1,667 kg Material: galvanized steel Consumption: 0,5 pcs / 1 bm
  • Window profile

    Window profile

    Size: width 2 mm, height 72 mm, length 1500  mm Weight: 1,5 kg Material: galvanized steel Consumption: 0,66 pcs / 1 bm
  • Adjustable extension L100

    Adjustable extension L100

    Size: width 50 mm, height 25 mm, length 100 mm Weight: 0,046 kg Material: galvanized steel Consumption: 3,2 pcs / 1 m2
  • Connecting piece of Bricks

    Connecting piece of Bricks

    Size: width 60 mm, height 15 mm, length 80 mm Weight: 0,026 kg Material: galvanized steel Consumption: 11 pcs / 1 m2
  • Expanded metal

    Expanded metal

    Size: according to the project Material: galvanized steel Consumption: according to the project
